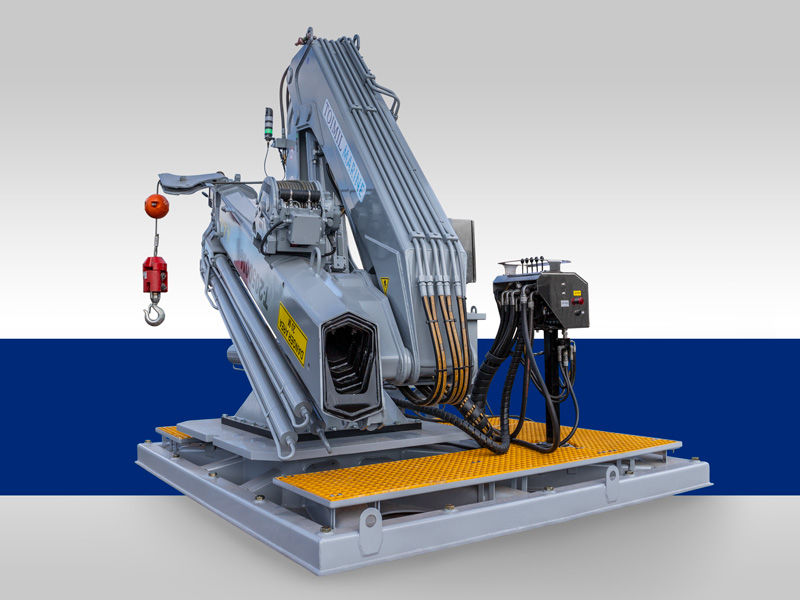

Toimil M Series Cranes

Toimil Marine M series foldable and articulated cranes are perfect for general cargo handling, fishing net handling, etc, and require little deck space.

Request a Quote Contact Us

Features

Standard Capacities from 3.0 up to 85 Tonne Meters
Designed to DIN standards
CE certificate
High strength steel alloy construction (Strenx 700) for light weight
Boom lengths up to 80 feet depending on model
Heavy duty enclosed slewing drives for marine applications at sea and corrosion protection

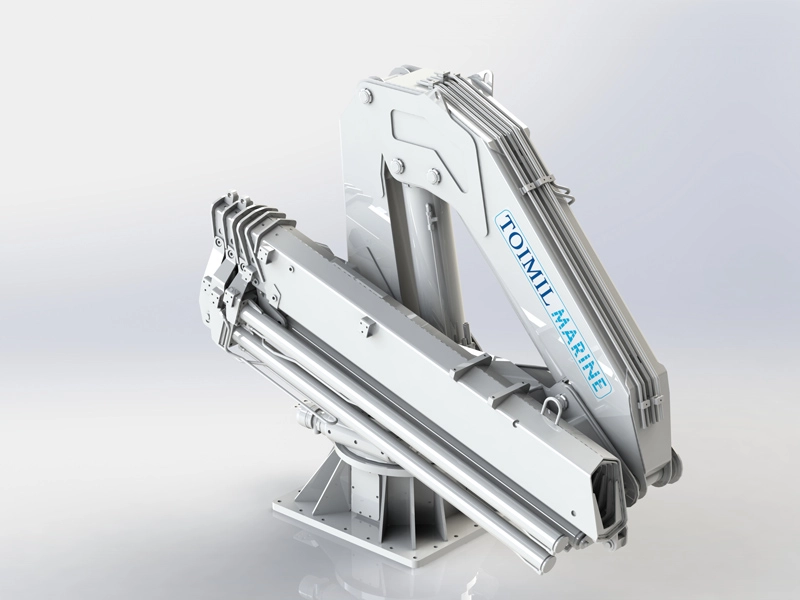

Articulated and folding design for compact stowage
316 stainless steel piping and hydraulic fittings
Nikrom nickel chrome cylinder rod finish for corrosion protection
Overload protection system with visual and audible alarm
4 coat marine paint system.

Plasma sprayed pure zinc over all steel weldments.
Two-part epoxy primer
Two-part polyurethane enamel x 2 coats

Options

Additional Manual Extensions
Wireless Remote Control
Electric Proportional controls
Explosion proof crane versions
Various regulatory body certifications
Electric hydraulic power units
Hydraulic grapples, buckets, and other boom tip accessories
ROV and AUV capture heads
Various paint colors

Scroll to View Full Chart >>

Models

Model	Available Boom Outreach (Fully Extended) ft [m]	Lifting Moment ft-lbs[Txm]	Crane Weight Min Lb [Kg]	Crane Weight Max Lb [Kg]
T – 85500M	25.43 - 87.60 [7.75 - 26.70]	542,000 [75.00]	14,550 [6,600]	18,300 [8,300]

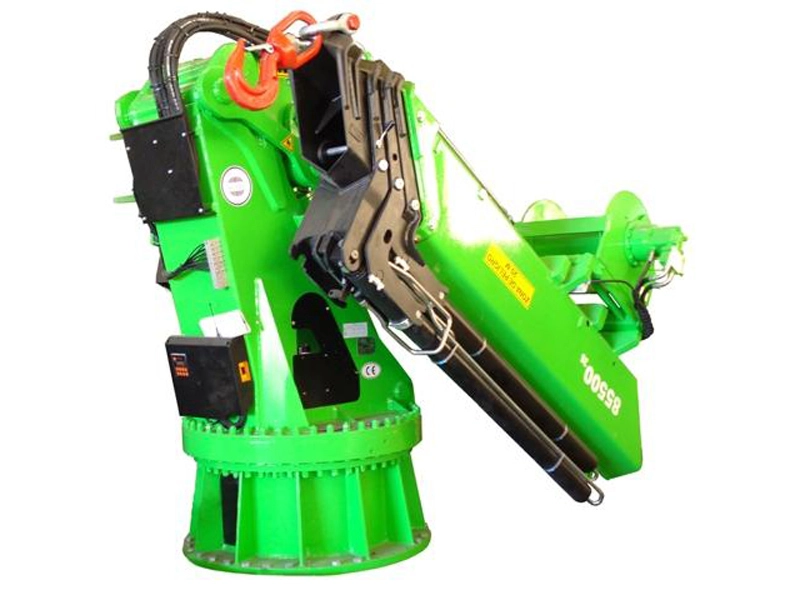

T – 75500M	26.25 - 66.11 [8.00 - 20.15]	491,000 [68.00]	14,330 [6,500]	18,080 [8,200]

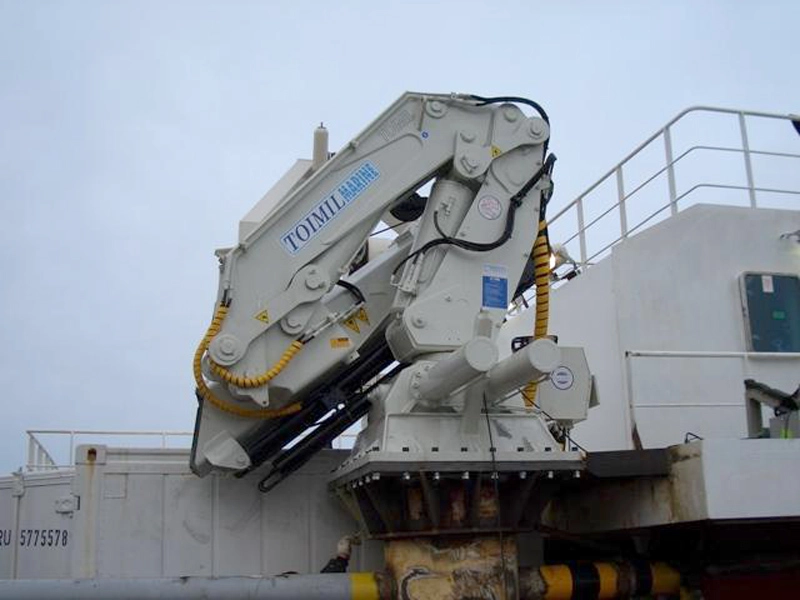

T – 50500M	26.08 - 74.80 [7.95 - 22.80]	361,000 [50.00]	10,955 [4,970]	14,770 [6,700]
T – 45500M	26.08 - 74.80 [7.95 - 22.80]	235,000 [32.50]	8,950 [4,060]	11,905 [5,400]
T – 35500M	25.59 - 69.39 [7.80 - 21.15]	238,000 [33.00]	7,715 [3,500]	9,900 [4,490]
T – 32500M	25.59 - 69.39 [7.80 - 21.15]	216,000 [30.00]	7,605 [3,450]	9,260 [4,200]
T – 25500M	20.24 - 52.56 [6.17 - 16.02]	180,000 [25.00]	6,615 [3,000]	8,300 [3,765]

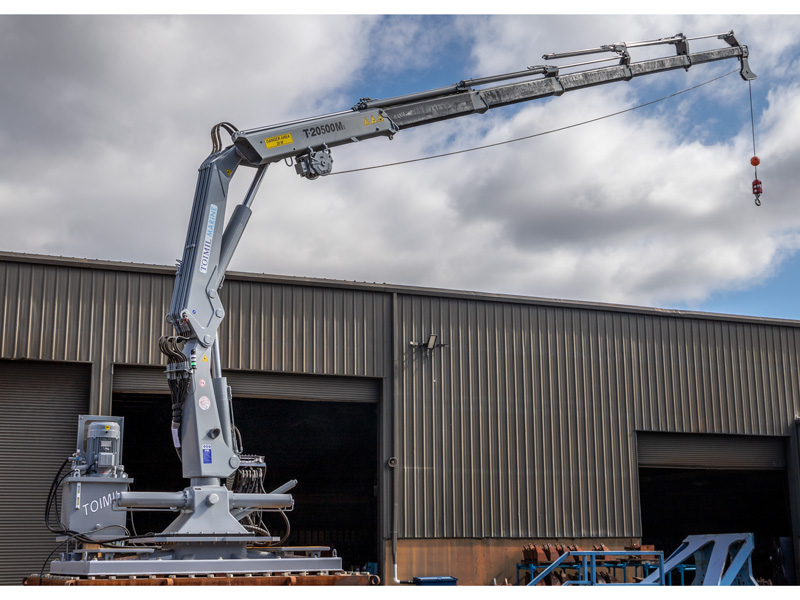

T – 20500M	20.44 - 53.15 [6.23 - 16.20]	144,000 [20.00]	5,050 [2,290]	6,370 [2,890]
T – 17500M	20.44 - 53.15 [6.23 - 16.20]	122,000 [17.00]	5,070 [2,300]	6,175 [2,800]
T – 14500M	19.69 - 46.95 [6.00 - 14.31]	101,000 [14.00]	3,415 [1,550]	4,320 [1,960]
T – 12500M	19.69 - 46.92 [6.00 - 14.30]	86,000 [12.00]	3,640 [1,650]	4,300 [1,950]
T – 10500M	19.69 - 39.86 [6.00 - 12.15]	75,000 [10.50]	2,865 [1,300]	3,305 [1,500]
T – 7500M	19.69 - 46.92 [6.00 - 14.30]	54,000 [7.50]	2,425 [1,100]	3,155 [1,430]
T – 055M	17.22 - 28.22 [5.25 - 8.60]	36,000 [5.00]	1,433 [650]	1,730 [785]
T – 045M	17.22 - 28.22 [5.25 - 8.60]	32,000 [4.50]	1,325 [600]	1,475 [670]
T – 3500M	15.52 - 25.30 [4.73 - 7.71]	20,000 [2.80]	950 [430]	1,125 [510]

Note: Specifications are subject to change without notice or obligation. Please contact us for details.

Where general information, pictures and descriptions are provided, some illustrations and specifications may require options not shown in the picture or included in the description.
