Leaders in the Design and Manufacture of Marine Cranes

Models
Model Boom Length
Ft [m]
Capacity (Extended)
Lb [Kg]
Capacity (Retracted)
Lb [Kg]
Spec Sheet Standard Winch Overturning Moment
Ft-lb [n-m]
Crane Weight
Lb [Kg]
TB5-20 20 [6.10] 5,200 [2359] 16,700 [7,575] Click Here Braden PD12C 181,000
[245,403]
3,750 [1,701]
TB5-30 30 [9.14] 3,100 [1,406] 15,100 [6,849] 4,250 [1,928]
TB5-40 40 [12.19] 2,000 [907] 14,200 [6,441] 4,750 [2,155]
TB10-20 20 [6.10] 9,600 [4,354] 31,500 [14,288] Click Here Braden PD12C 320,500
[434,540]
4,500 [2,041]
TB10-30 30 [9.14] 5,900 [2,676] 24,900 [11,294] 5,000 [2,268]
TB10-40 40 [12.19] 4,100 [1,860] 20,500 [9,299] 5,500 [2,495]
TB20-20 20 [6.10] 16,800 [7,620] 53,900 [24,449] Click Here Braden PD15B 551,200
[747,327]
8,600 [3,901]
TB20-30 30 [9.14] 10,300 [4,672] 42,500 [19,278] 9,700 [4,400]
TB20-40 40 [12.19] 7,100 [3,221] 34,900 [15,830] 10,850 [4,921]
TB20-50 50 [15.24] 5,200 [2,359] 29,600 [13,426] 12,000 [5,443]
TB40-40 40 [12.19] 16,100 [7,303] 65,700 [29,801] Click Here Braden PD15B 1,194,300
[1,619,253]
18,000 [8,165]
TB40-50 50 [15.24] 11,700 [5,307] 54,700 [24,812] 18,800 [8,528]
TB40-60 60 [18.29] 8,500 [3,856] 55,100 [24,993] 19,600 [8,890]
TB40-70 70 [21.34] 6,300 [2,858] 50,500 [22,906] 20,500 [9,299]
TB60-40 40 [12.19] 24,500 [11,113] 105,100 [47,673] Click Here Braden CH210A 1,765,900
[2,394,239]
24,000 [10,886]
TB60-50 50 [15.24] 18,300 [8,301] 88,300 [40,052] 25,500 [11,567]
TB60-60 60 [18.29] 13,800 [6,260] 82,900 [37,602] 27,000 [12,247]
TB60-70 70 [21.34] 10,700 [4,853] 76,300 [34,609] 28,600 [12,973]
TB60-80 80 [24.38] 8,300 [3,765] 72,400 [32,840] 30,200 [13,698]
TB60-100 100 [30.48] 4,700 [2,132] 67,800 [30,753] 33,250 [15,082]
TB60-110 110 [33.53] 3,300 [1,497] 44,900 [20,366] 34,800 [15,785]
TB80-60 60 [18.29] 28,200 [12,791] 166,500 [75,523] Click Here Braden CH280B 3,227,000
[4,375,225]
43,250 [19,618]
TB80-70 70 [21.34] 22,400 [10,160] 148,800 [67,495] 45,600 [20,684]
TB80-80 80 [24.38] 17,900 [8,119] 141,600 [64,229] 47,950 [21,750]
TB80-100 100 [30.48] 12,000 [5,443] 133,800 [60,691] 52,650 [23,882]
TB80-110 110 [33.53] 9,300 [4,218] 131,000 [59,421] 55,000 [24,948]
TB100-70 70 [21.34] 24,700 [11,204] 152,100 [68,991] Click Here Braden CH280B 5,015,000 [6,820,400]
70,000 [31,752]
TB100-80 80 [24.38] 20,000 [9,072] 149,400 [67,767] 75,000 [34,019]
TB100-90 90 [27.43] 16,900 [7,666] 78,000 [35,380] 80,000 [36,287]
TB100-100 100 [30.48] 13,700 [6,214] 75,900 [34,428] 85,000 [38,555]
TB100-110 110 [33.53] 11,000 [4,990] 74,100 [33,611] 90,000 [40,823]
TB150-70 70 [21.34] 54,100 [24,539] 268,100 [121,608] Click Here Braden CH400B 7,080,800
[9,600,275]
72,900 [33,067]
TB150-80 80 [24.38] 44,800 [20,321] 237,800 [107,864] 76,900 [34,881]
TB150-100 100 [30.48] 32,300 [14,651] 202,300 [91,762] 84,980 [38,546]
TB150-110 110 [33.53] 27,000 [12,247] 196,300 [89,040] 89,000 [40,370]
TB300-70 70 [21.34] 81,100 [36,786] 371,700 [168,600] Click Here Braden CH400B 10,334,800
[14,012,107]
139,000 [63,049]
TB300-80 80 [24.38] 67,700 [30,708] 329,400 [149,413] 146,250 [66,338]
TB300-100 100 [30.48] 49,500 [22,453] 298,100 [135,516] 160,750 [72,915]
TB300-110 110 [33.53] 42,400 [19,232] 289,500 [131,315] 168,000 [76,204]

Note: Specifications are subject to change without notice or obligation. Please contact us for details.

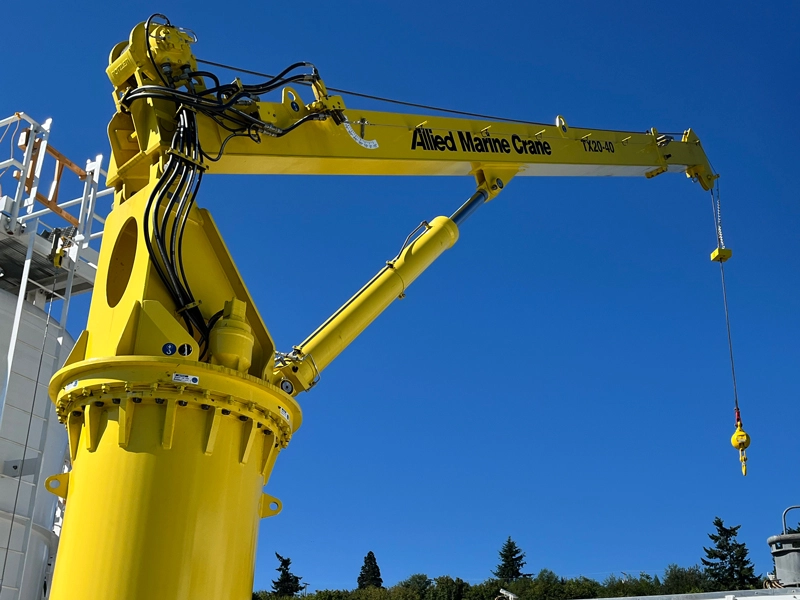

Telescopic Boom Crane

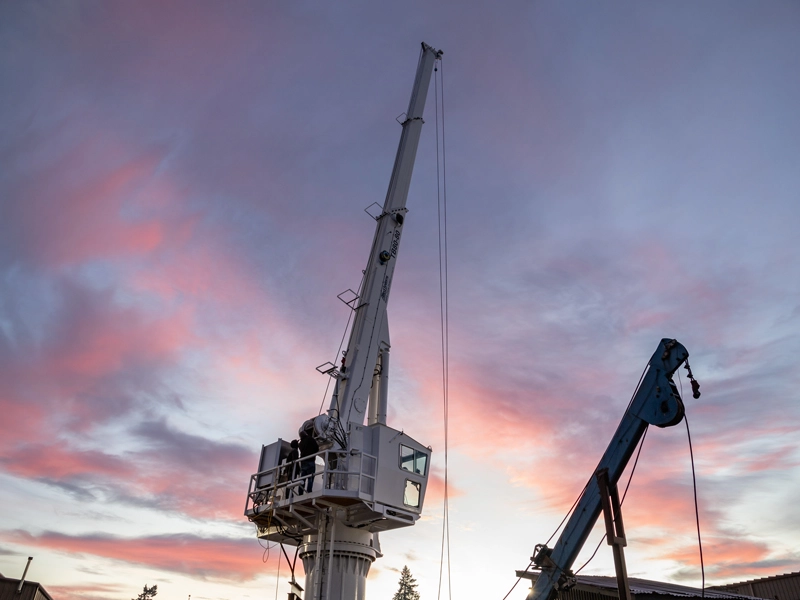

Telescopic Boom Crane on test stand at sunrise

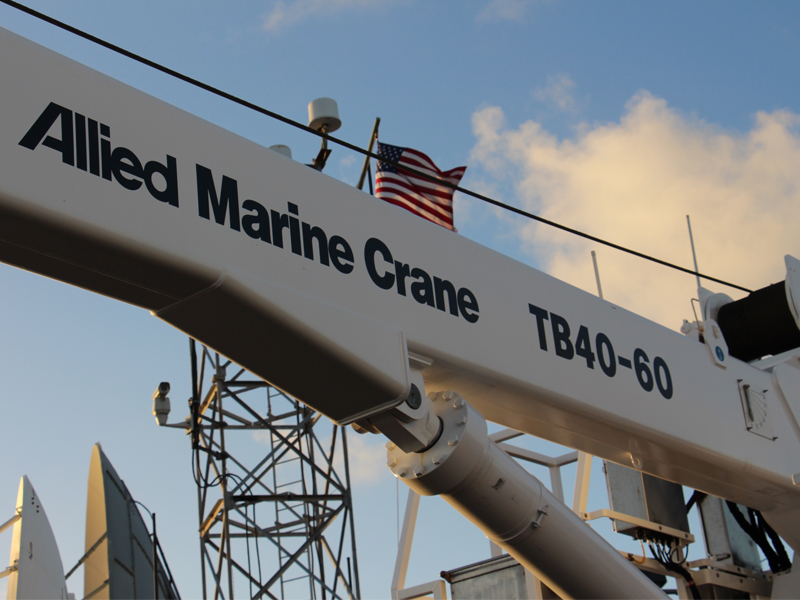

Zoomed in shot of Allied Marince Crane logo on Crane arm with American Flag in background

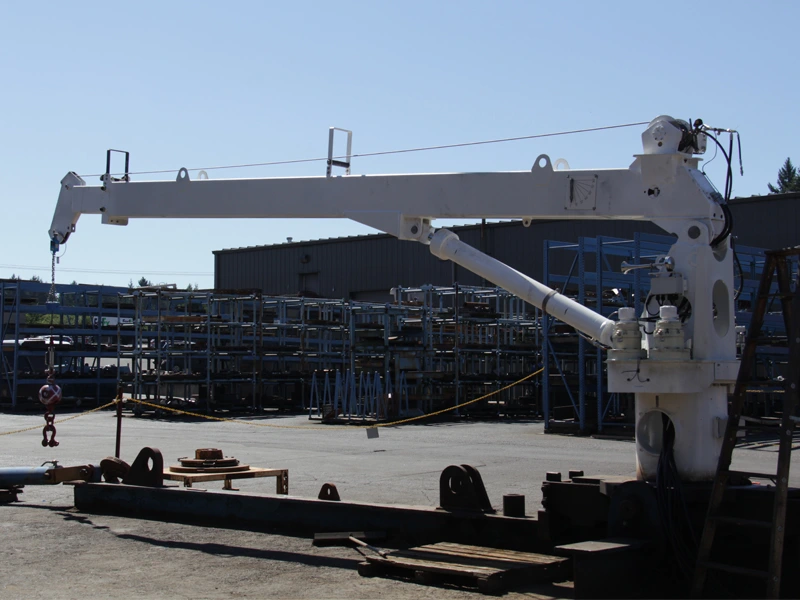

Telescopic Boom Crane on mounting block
Telescopic Boom Crane on mounting block

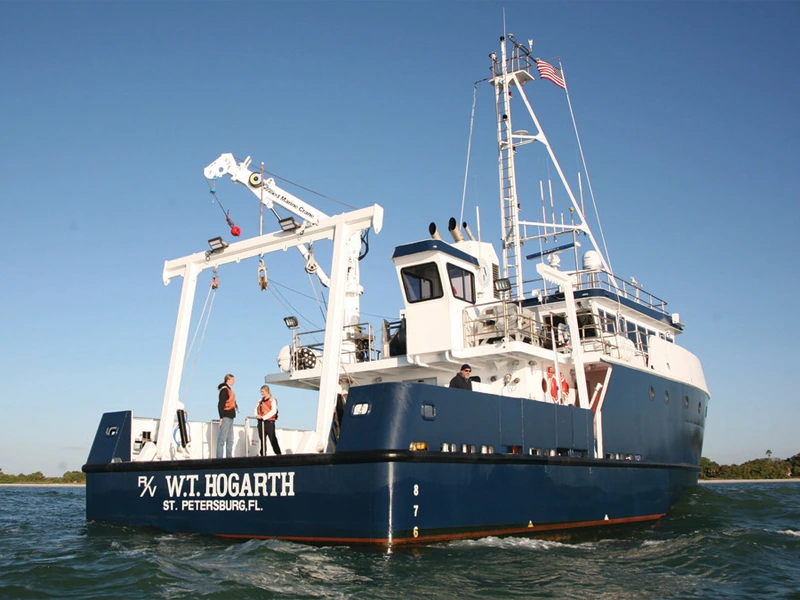

Telescopic Boom Crane mounted on a research vessel
Telescopic Boom Crane on test stand at sunrise
Zoomed in shot of Allied Marince Crane logo on Crane arm with American Flag in background
Telescopic Boom Crane on mounting block
Telescopic Boom Crane on mounting block
Telescopic Boom Crane mounted on a research vessel

Allied's hydraulic jib booms give you the reach you want, in a crane that stores compactly and is easy to place. Continuous adjustment of the boom over the course of work results in a more efficient crane. Multiple booms ensure a Telescopic Boom crane will be able to meet your requirements for strength and agility. Years of severe duty on multiple US research vessels have proven our Telescopic Boom cranes' durability and performance. Capacities from 1 to 85 tons.

Features

  • 2 Roller Bearing Sheaves
  • Swivel Hook and Safety Latch
  • 3 Part Marine Coating System
  • 2 or 3 Piece Telescoping Boom
  • Gravity Boom Angle Indicator
  • One Piece Tubular Construction Pedestal
  • OSHA Compliant
  • Open Turret Design
  • Spring Applied Automatic Brakes (Swing)
  • 360° Continuous Rotation
  • Heavy Duty Marine Hydraulic Cylinders
  • Load Hold Valves
  • Crane Mounted or Remote Power Pack
  • Electric Motor
  • Built in Drip Pan and Return Filter

Options

  • Explosion Proof
  • Cold Weather Steel
  • Cab Air Conditioning and Heater
  • Heave Compensation
  • Stainless Steel Cylinder Rods
  • ABS Certification
  • API-2C Monogram
  • Load Indicator
  • Flood Lights
  • Stainless Steel Hydraulic Tank

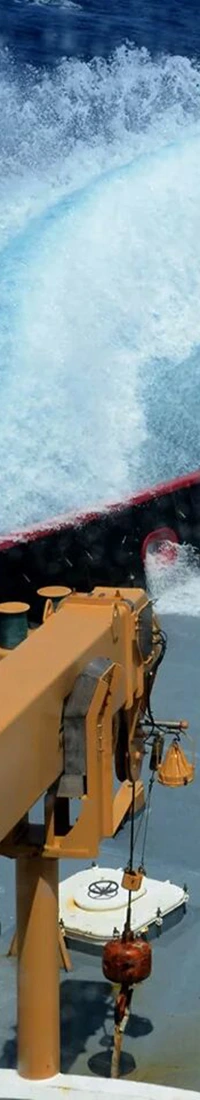

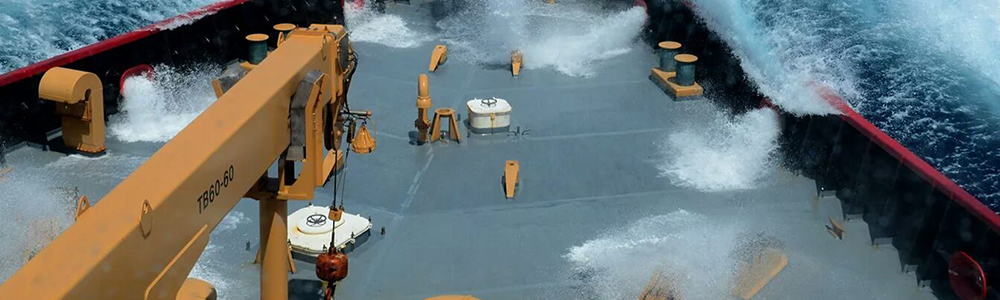

Ship deck with telescopic boom crane
