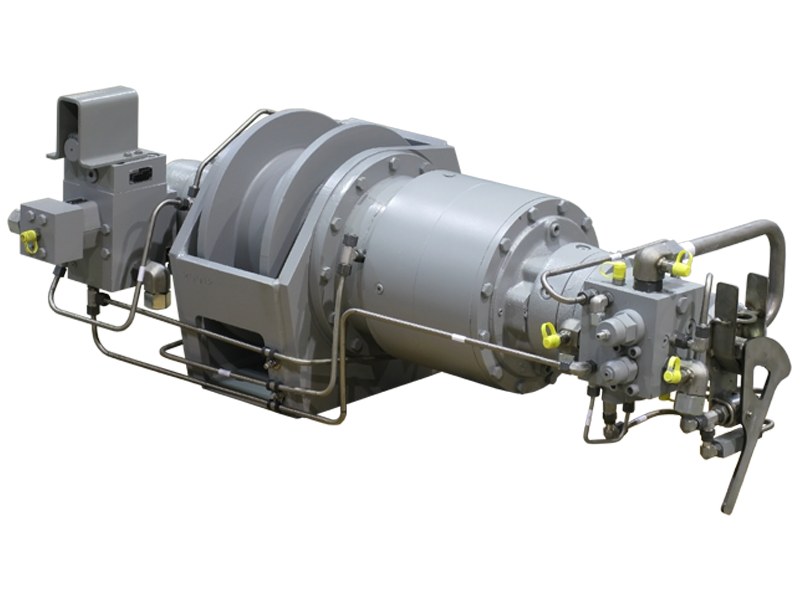

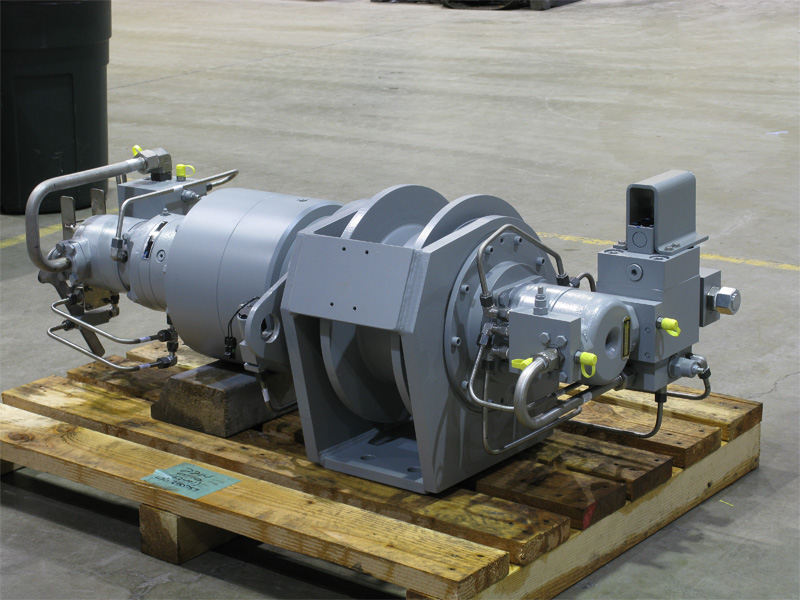

CT - Constant Tension Winch

Allied provides a wide range of constant tension winches for maintaining constant line pull in rough seas. This feature makes it easier and safer to launch and retrieve a rescue boat using the Allied davit. The Allied constant tension winch delivers the high performance and reliability needed in severe marine environments.

Options

  • USCG SOLAS Approval
  • Downstop Assembly
  • Emergency Lowering
  • Payout Indicator
  • API/ABS
  • Pressure Roller
  • Fairlead

Scroll to View Full Graph >>

Models

Model Bare Drum Line Pull
Lb [Kg]
Normal Hoisting Speed
fpm [m/sec]
CT Line Speed
fpm [m/sec]
Weight
Lb [Kg]
CT7 10,000 [4,536] 90 [0.457] 1,000 [5.1] 960 [435]
CT10 15,000 [6,804] 90 [0.457] 1,000 [5.1] 1,060 [481]
CT22 22,000 [9,979] 111 [0.564] 456 [2.3] 3,430 [1,556]
