Models
Model	Boom Length Ft [m]	Capacity (Max Reach) Lb [Kg]	Capacity (Min Reach) Lb [Kg]	Spec Sheet	Standard Winch	Overturning Moment Ft-lb [n-m]	Crane Weight Lb [Kg]
DT5-20	20 [6.10]	5,000 [2,268]	15,800 [7,167]	View Spec Sheet	Braden PD12C	181,000 [245,403]	2,700 [1,225]
DT5-30	30 [9.14]	2,900 [1,315]	11,900 [5,398]				2,900 [1,315]
DT5-40	40 [12.19]	1,900 [862]	8,100 [3,674]				3,100 [1,406]
DT10-20	20 [6.10]	9,300 [4,218]	30,400 [13,789]	View Spec Sheet	Braden PD12C	320,500 [434,540]	3,550 [1,610]
DT10-30	30 [9.14]	5,600 [2,540]	23,100 [10,478]				3,800 [1,724]
DT10-40	40 [12.19]	3,800 [1,724]	18,500 [8,391]				4,100 [1,860]
DT10-50	50 [15.24]	2,700 [1,225]	15,400 [6,985]				4,400 [1,996]
DT20-20	20 [6.10]	16,100 [7,303]	52,200 [23,678]	View Spec Sheet	Braden PD15B	551,200 [747,327]	6,650 [3,016]
DT20-30	30 [9.14]	9,800 [4,445]	39,500 [17,917]				7,150 [3,243]
DT20-40	40 [12.19]	6,600 [2,994]	31,600 [14,334]				7,700 [3,493]
DT20-50	50 [15.24]	4,600 [2,087]	26,100 [11,839]				8,250 [3,742]
DT40-30	30 [9.14]	21,700 [9,843]	79,200 [35,925]	View Spec Sheet	Braden PD15B	1,194,300 [1,619,253]	11,200 [5,080]
DT40-40	40 [12.19]	15,000 [6,804]	63,000 [28,576]				11,850 [5,375]
DT40-50	50 [15.24]	11,000 [4,990]	38,500 [17,463]				12,500 [5,670]
DT40-60	60 [18.29]	8,300 [3,765]	44,100 [20,003]				13,150 [5,965]
DT60-40	40 [12.19]	22,500 [10,206]	98,400 [44,633]	View Spec Sheet	Braden CH210A	1,765,900 [2,394,239]	17,150 [7,779]
DT60-50	50 [15.24]	16,500 [7,484]	81,500 [36,968]				18,150 [8,223]
DT60-60	60 [18.29]	12,500 [5,670]	69,300 [31,434]				19,150 [8,686]
DT60-70	70 [21.34]	9,500 [4,309]	59,900 [27,170]				20,150 [9,140]
DT60-80	80 [24.38]	7,300 [3,311]	52,400 [23,768]				21,150 [9,594]
DT80-50	50 [15.24]	32,600 [14,787]	145,100 [65,816]	View Spec Sheet	Braden CH280B	3,227,000 [4,375,225]	32,500 [14,742]
DT80-60	60 [18.29]	25,000 [11,340]	123,100 [55,837]				34,000 [15,422]
DT80-70	70 [21.34]	19,500 [8,845]	106,400 [48,626]				35,500 [16,103]
DT80-80	80 [24.38]	15,200 [6,895]	93,100 [42,229]				37,000 [16,783]
DT80-100	100 [30.48]	9,900 [4,491]	74,400 [33,747]				40,000 [18,144]
DT150-60	60 [18.29]	60,400 [27,397]	284,900 [129,228]	View Spec Sheet	Braden CH400B	7,080,800 [9,600,275]	60,350 [27,375]
DT150-70	70 [21.34]	49,300 [22,362]	248,300 [112,627]				62,650 [28,418]
DT150-80	80 [24.38]	40,900 [18,552]	219,500 [99,564]				64,950 [29,461]
DT150-100	100 [30.48]	29,500 [13,381]	177,700 [80,603]				69,550 [31,548]
DT150-110	110 [33.53]	24,900 [11,294]	161,400 [73,210]				71,850 [32,591]
DT300-60	60 [18.29]	90,800 [41,186]	402,600 [182,616]	View Spec Sheet	Braden CH400B	10,334,800 [14,012,107]	110,850 [50,281]
DT300-70	70 [21.34]	74,200 [33,657]	350,300 [158,893]				114,200 [51,801]
DT300-80	80 [24.38]	61,500 [27,896]	309,200 [140,250]				117,500 [53,298]
DT300-100	100 [30.48]	44,500 [20,185]	248,700 [113,262]				124,200 [56,337]
DT300-110	110 [33.53]	37,400 [16,964]	226,400 [102,693]				127,550 [57,856]

Note: Specifications are subject to change without notice or obligation. Please contact us for details.

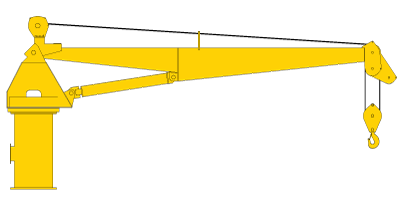

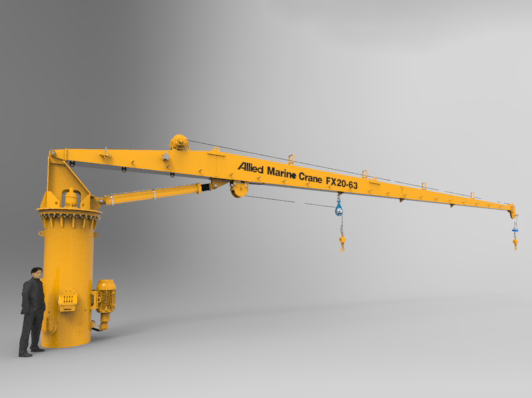

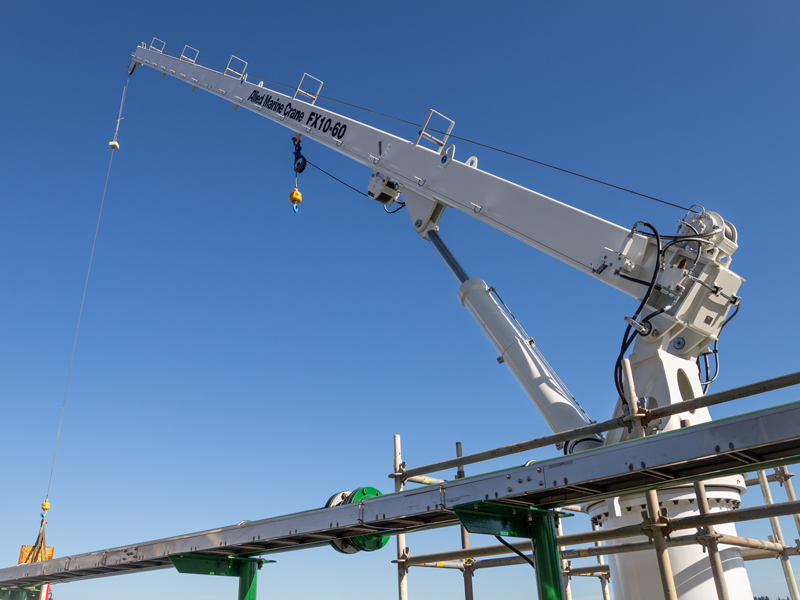

Fixed Boom Crane

Lower your crane maintenance costs with a Fixed Boom crane from Allied Marine Crane. A sealed box boom gives you high capacity with low maintenance. Fixed booms have the strength of a regular square section boom with a fraction of the weight. With optional pinned boom joints, the FX/DT series can be efficiently stored and transported. Boom lengths up to 125 feet and capacities of up to 150 tons allow the Fixed Boom crane to match many applications. If you are looking for lightweight strength and cost competitve pricing, look no further than the Allied Fixed Boom Crane.
