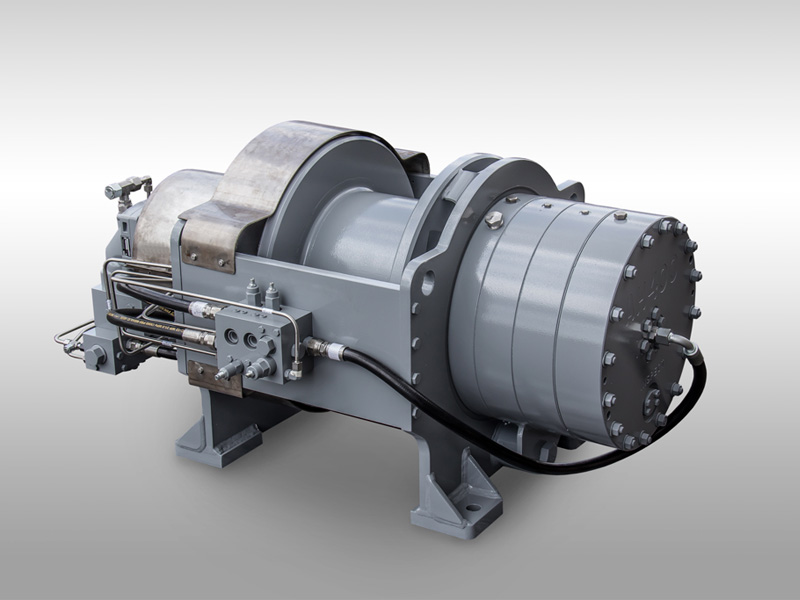

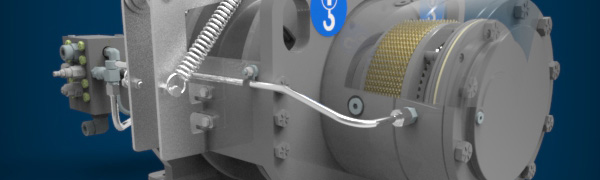

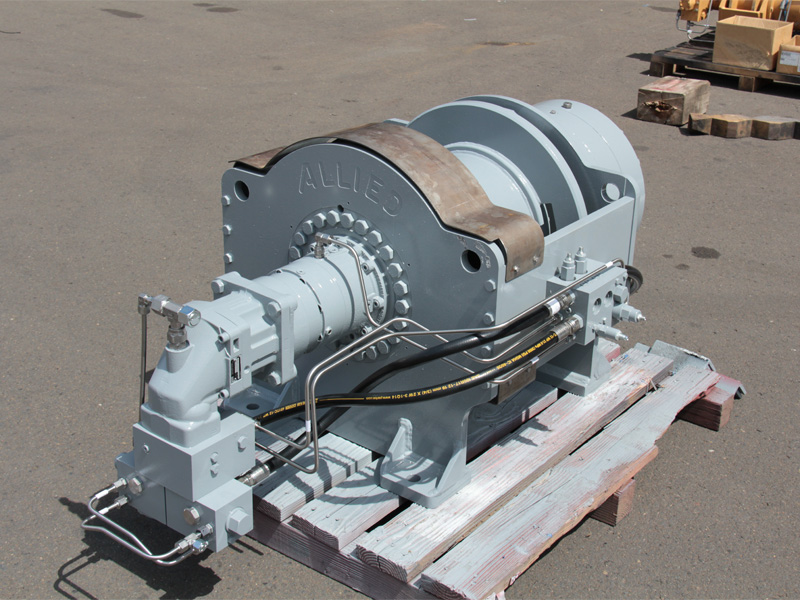

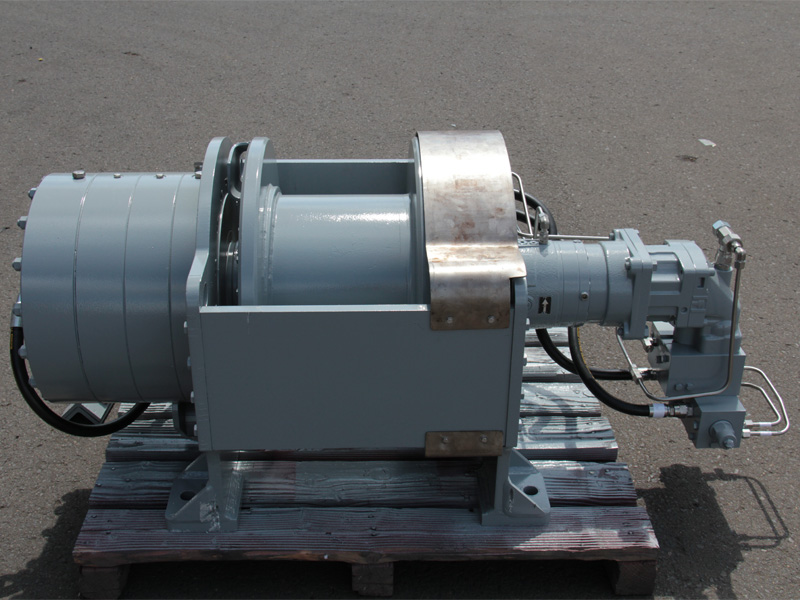

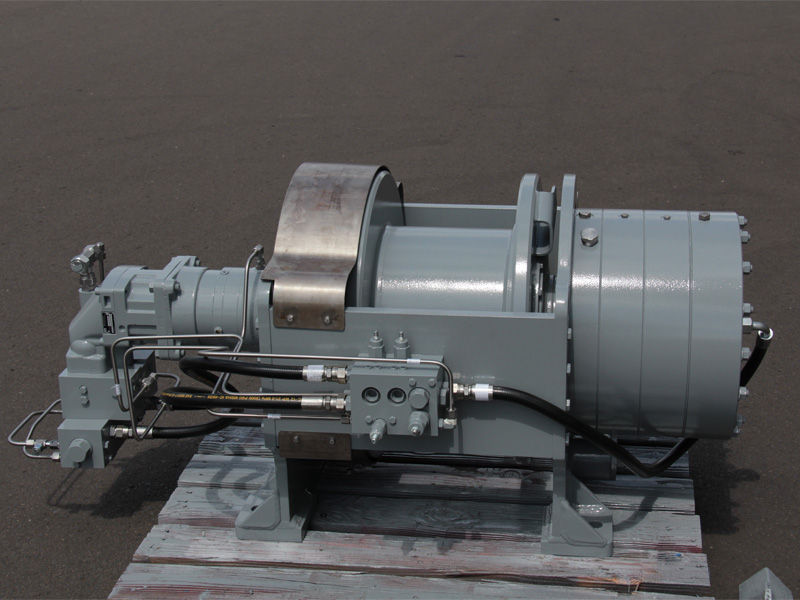

AH - Allied ABS Winch

The Allied AH winches are intended for use on ABS-classed vessels where personnel handling is required in cold weather environments. The AH winches use Charpy tested materials for cold weather conditions; a redundant drum brake ensures safety in the most extreme situations. This product line offers a range of line pulls from 2,000 lbs. to over 50,000 lbs.

Options

  • Downstop Assembly
  • Emergency Lowering
  • Payout Indicator
  • Cold Weather Rated
  • Pressure Roller
  • Fairlead

Scroll to View Full Graph >>

Models

Model Wire Rope Diameter
in [mm]
Rated Line Pull
Lb [Kg]
Rated Line Speed
fpm [m/min]
Weight
Lb [Kg]
AH080A 3/8 [10] 2,000 [907] 80 [24.4] 804 [365]
AH110A 9/16 [14] 7,500 [3,402] 59 [18.0] 1,164 [528]
AH200A 9/16 & 5/8 [14 & 16] 18,800 [8,527] 135 [41.1] 2,000 [907]
AH400A 3/4 & 7/8 [19 & 22] 36,400 [16,510] 200 [61.0] 3,150 [1,429]
AH600A 1 & 1-1/8 [25 & 29] 55,700 [25,265] 100 [30.4] 8,000 [3,629]

Note: Specifications are subject to change without notice or obligation. Please contact us for details.
