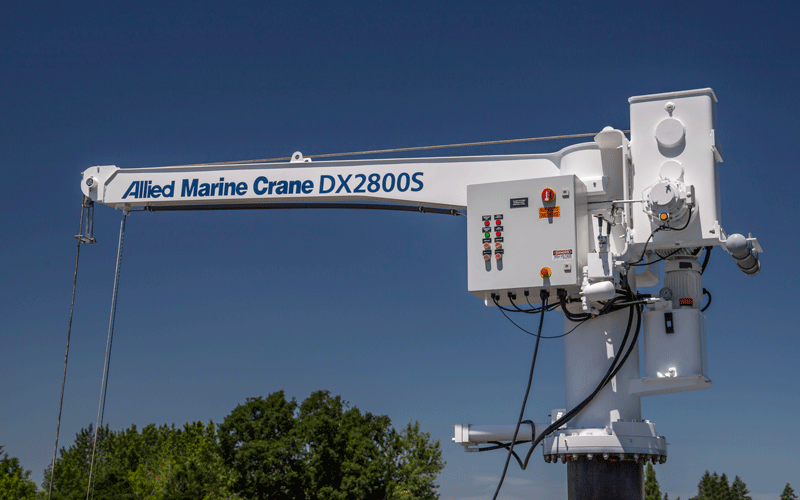

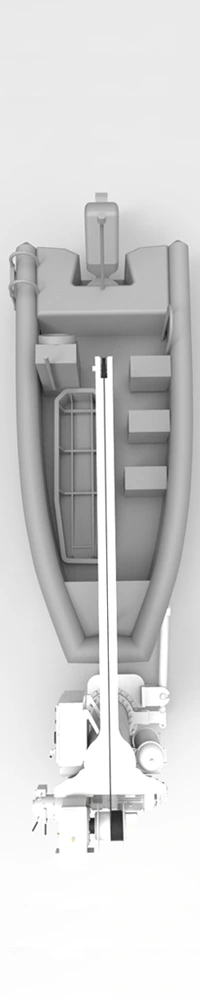

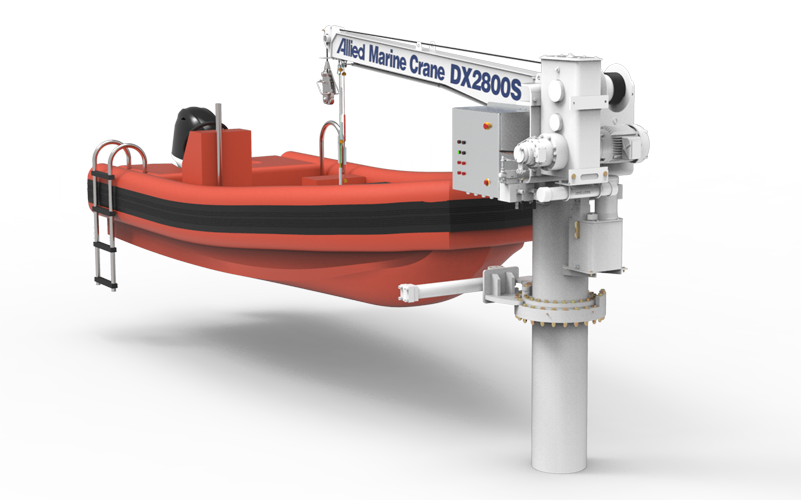

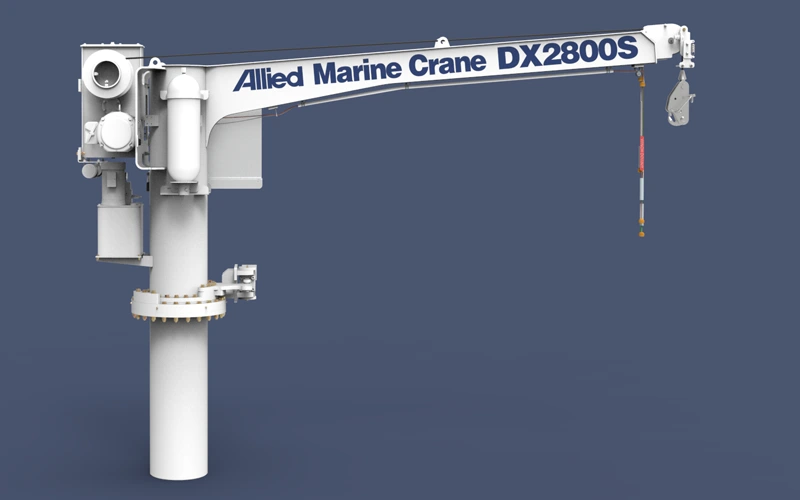

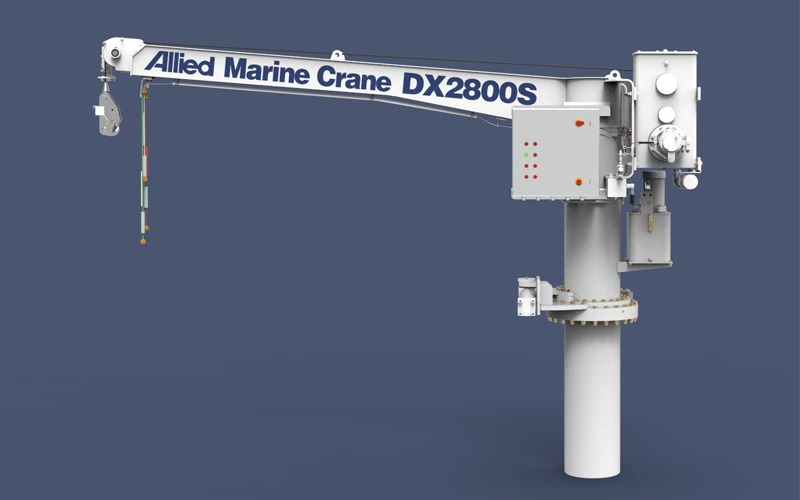

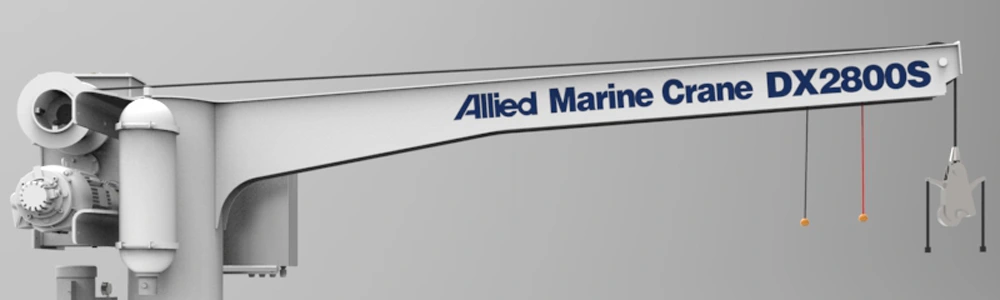

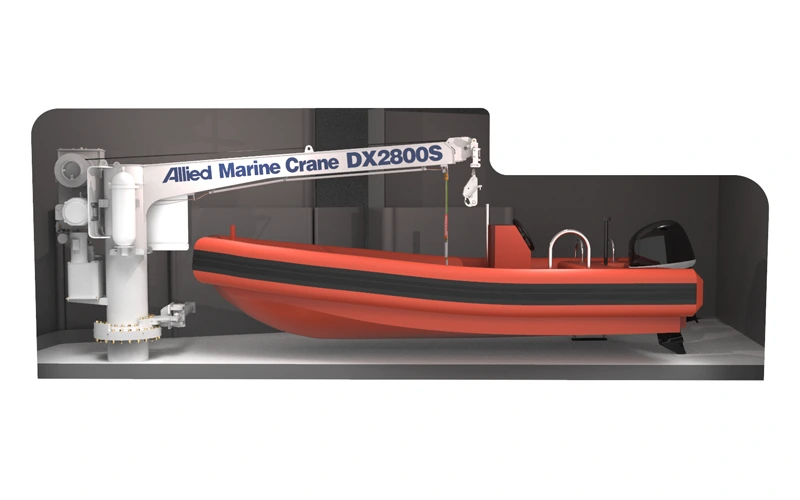

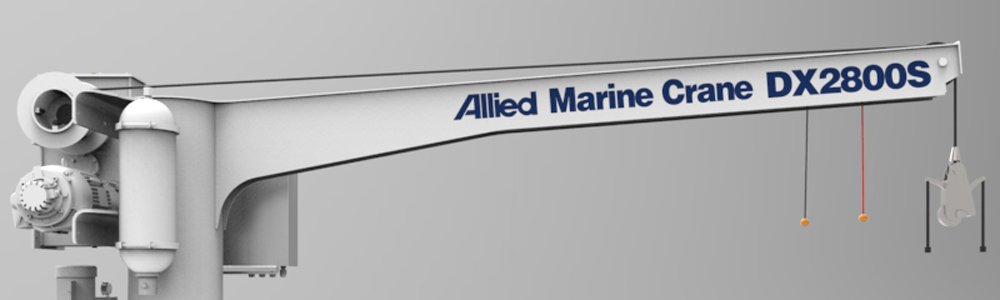

DX-Series Davit

Allied Marine Crane has over 40 years of expertise in engineering and manufacturing davits for the Coast Guard and US Navy. The DX Series Davits have been designed and priced with the commercial market in mind. The DX Series Davits are low cost, ultra-compact, lightweight and can accommodate a wide variety of rescue boats. DX Series Davits are a great solution for your vessel.

  • SOLAS Compliant
  • United States Coast Guard Approved
  • Made In America
  • Versatile, Lightweight and Ultra-Compact, Allowing for Installation Into Very Tight Deck Envelopes
  • Best-in-Class Capacity and Reach
  • Allied's Most Competitive Pricing Ever


  • In-Boat Solas Controls
  • Electric Hoist
  • Multiple Configurations
  • Emergency Slewing/Hoisting Operation
  • Fits Most SOLAS Rescue Boats
  • Marine Grade Materials/Manufacture
  • 90° Slew Swing
  • Resistant to Corrosion and UV Degradation
  • Minimal Hydraulic Oil
  • Cost Competitive


  • Weld Down Pedestal Adapter
  • Custom Height Adapter
  • Boat Cradle
  • Automatic Off-Load Release Hook

Scroll to View Full Chart >>


Model Slewing Safe Working Load Davit Weight* Max Overturning Moment Max Torque Max Axial Force Max Hook Drop
DXM2300S Manual 2,328 lbs [1,056 kg] 2,800 lbs [1,270 kg] 34,000 ft-lbs [4,701 kg-m] 11,500 ft-lbs [1,590 kg-m] 5,328 lbs [2,417 kg] 93.5 ft    [28.5 m]

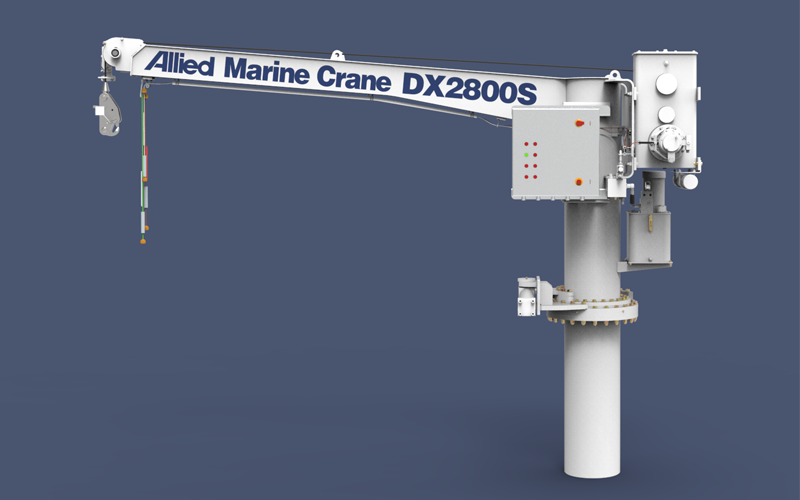

DX2800S Hydraulic 2,800 lbs [1,270 kg] 3,000 lbs [1,361 kg] 43,000 ft-lbs [5,945 kg-m] 13,500 ft-lbs [1,866 kg-m] 5,300 lbs [2,405 kg] 93.5 ft    [28.5 m]

Note: Specifications are subject to change without notice or obligation. Please contact us for details.

*Weight will vary based on davit options

**Specs subject to change without notice
