Coal Carrydozers

Like Wagner's flagship Woodchip Handling Carrydozers, the Wagner Coal Dozer provides maximum productivity with optimum safety. With coveted features like an oscillating rear axle, true side tilt on the centerline of the machine, heavy duty double reduction planetary axles with wet brakes, selectable automatic transmission, and far greater compaction than a track machine, the Wagner Coal Dozer is a coal handling workhorse. And with buckets that dump nearly 13 feet ahead of the front axle, operators remain at a safe distance from the edge of the pile.

Facebook logo - Allied Systems Facebook page   LinkedIn logo - Allied Systems LinkedIn page
Features

Oscillating Front Frame

Bucket Side-Tilt

Force-Cooled Wet-Disc Brakes

Easy Access Cooler Bays

Selectable Automatic Transmission

Walk-Around Platform

Advantages

Better Fuel Economy

Bucket dumps 13 feet ahead ahead of axle for maximum safety

Easy access to power train and cooling systems

More Capacity for Dollar Spent

Higher Percentage of Available Horsepower Used to Push Coal

Options

Remote Monitoring

Auto Lubrication System

Trainer's Seat

Fire Suppression System

And Many More

Model Max Horsepower
hp [kW]
Bucket Push & Doze Capacity
cu/yd [cu/m]
Bucket Lift & Carry Capacity
cu/yd [cu/m]
Operating Weight
lbs [kg]
CD600 360
[270]
30
[22.9]
15
[11.5]
83,400
[37,800]
CD1000 525
[391]
40
[30.6]
20
[15.3]
92,750
[42,109]
Note:
Values in this table are approximate.
Specifications are subject to change without notice or obligation.

Wagner Support

Contact Us

New Units Service Parts & Field Service
Hitesh Patel
503.825.3380
wagner@alliedsystems.com
503-625-2560
parts@alliedsystems.com
service@alliedsystems.com

Click to find a dealer in your area.

Click to Request more information.
Wagner Videos
Wagner 60 Ton Logstackers

Wagner 60 Ton Logstacker Video Thumbnail - Wagner 60 Ton Logstacker YouTube video
Wagner New Generation Logstackers

Wagner New Generation Logstacker Thumbnail - Wagner New Generation logstacker YouTube video

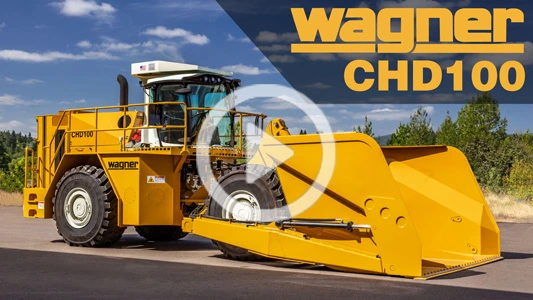

Wagner CHD100 Woodchip Carrydozer
