Bale Wagon (7000)

Bale Wagon Model: 7000

Bale Wagon Model: 7000

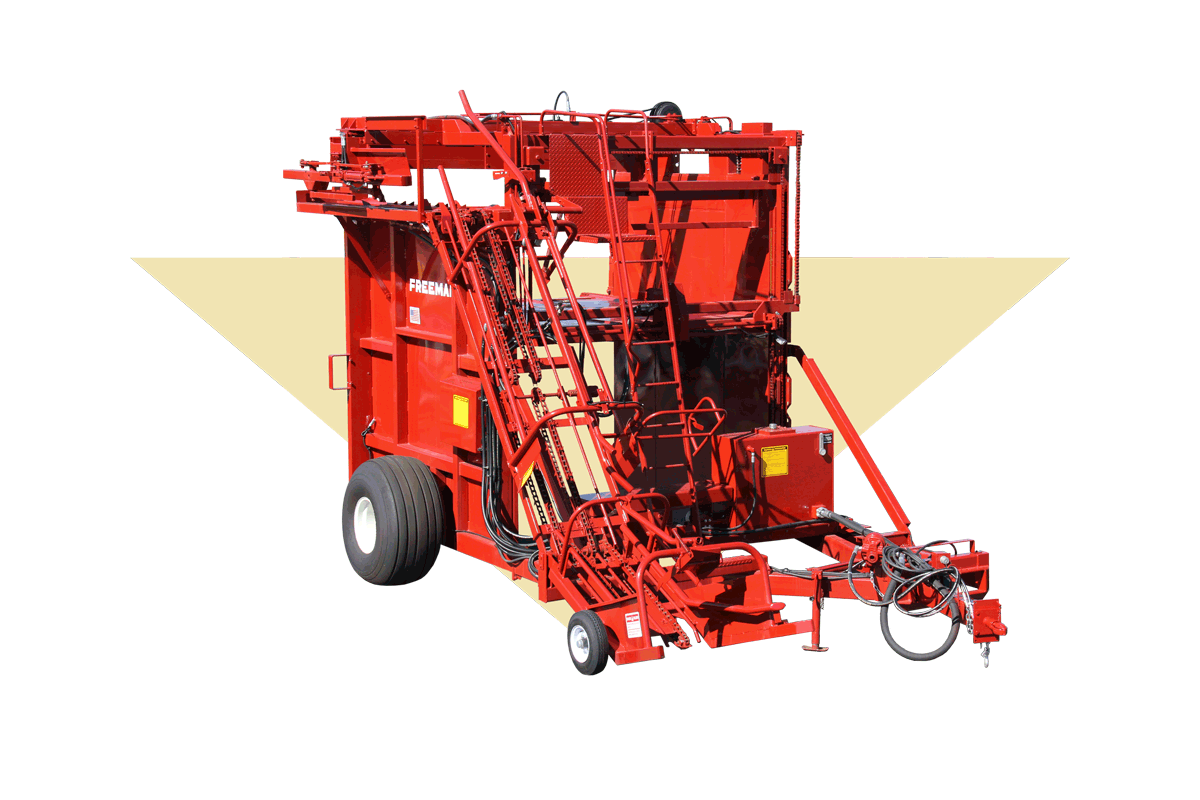

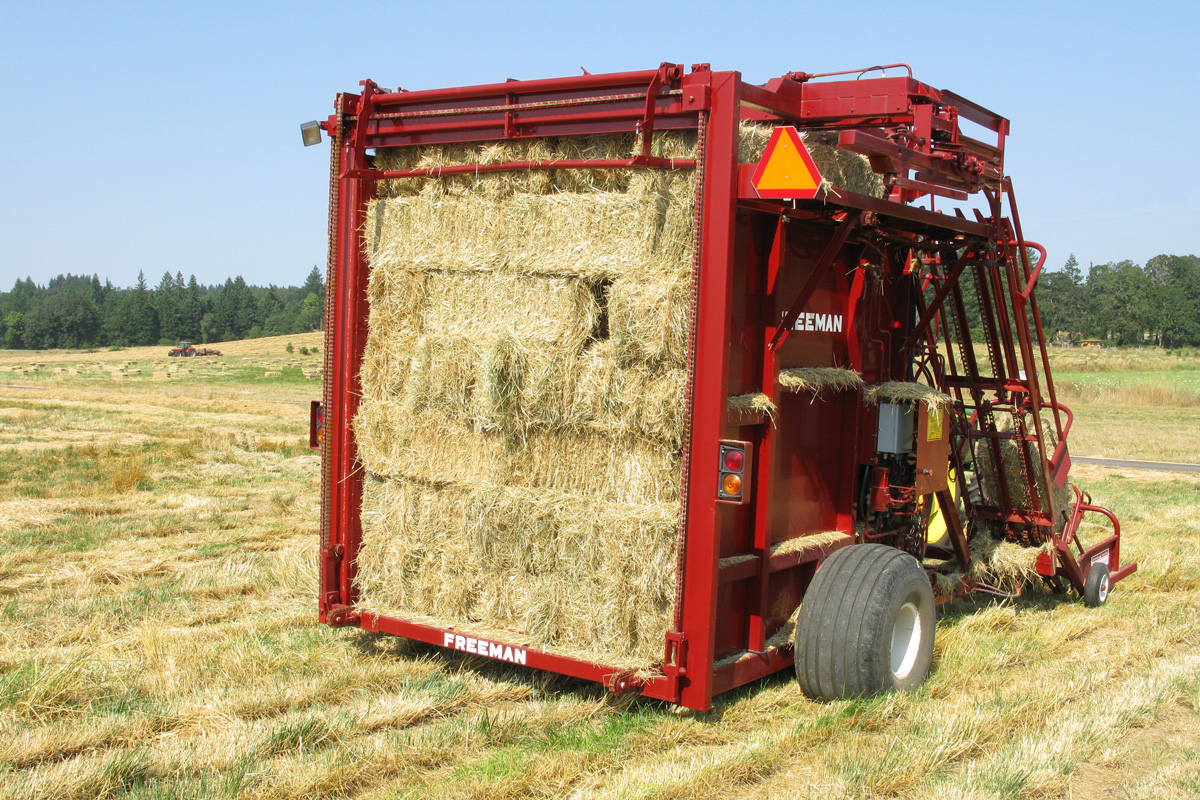

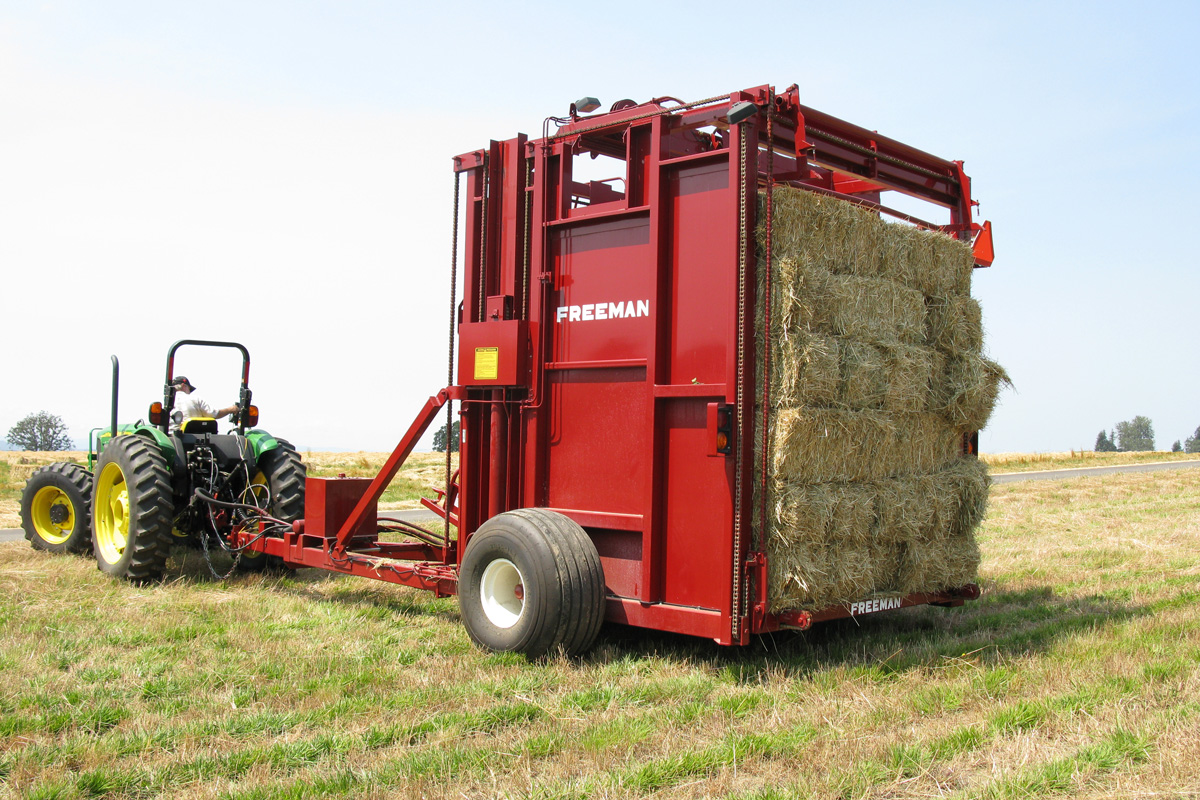

The Freeman 7000 Automatic Bale Wagon stacks industry standard, weather resistant, stand-alone block stacks that hay buyers prefer. The building of a Freeman block stack is controlled by an electronic bale control system at each tier level throughout the stacking process, making the automatic loading system simple to operate. The operator selected tie-tier patterns make changing between 3-tie and 2-tie bales quick and easy, in 10 minutes or less. Take the work and worry out of stacking hay with the Freeman 7000 Bale Wagon.


Length: 22'-6"
Width: 13'-6"
Height: 13'-0"
Weight: 10,200 lbs
Tractor Requirements:  50 HP, 540 rpm PTO, 12VDC
Hydraulic System:  Self-contained, operated by tractor PTO
STACK SIZE, 45-48" (114-122 cm) Bale Length Required:
Height:  Up to 9'-4" (2.84 m)
Width:  8' x 8' (2.44 m x 2.44 m)
15" or 16" X 22" 3-Tie Bales/Stack:  56
16" X 18" 2-Tie Bales/Stack:  67
14" X 18" 2-Tie Bales/Stack:  74
7000 Bale Wagon Capacity (140lb, 16" x 22" bale):
 Tons / Load:  3.92 tons (3,556 kg)
Avg Loads/Hr:   6
Avg Capacity / 10 Hr Day:   3360 bales / 235 tons (213 metric tons)

Note: Specifications are subject to change without notice or obligation. Please consult your dealer for details.
