3-Tie Side Feed Bales

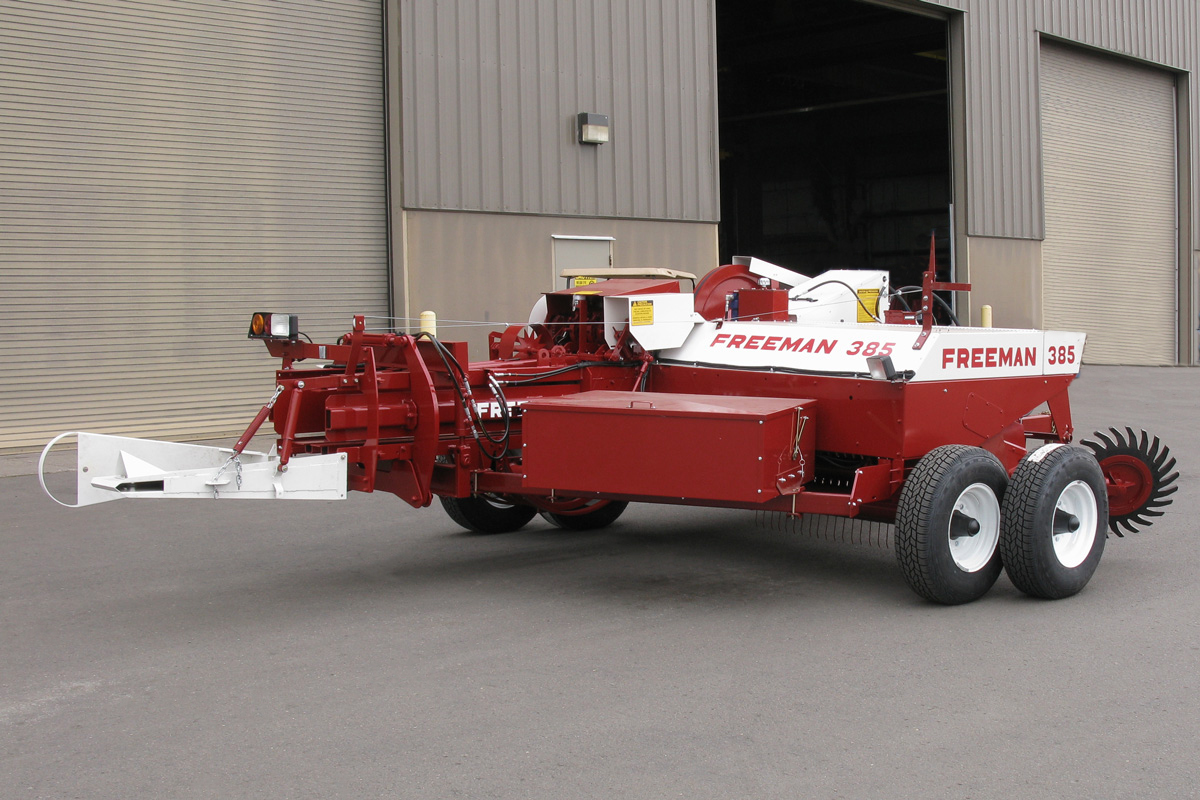

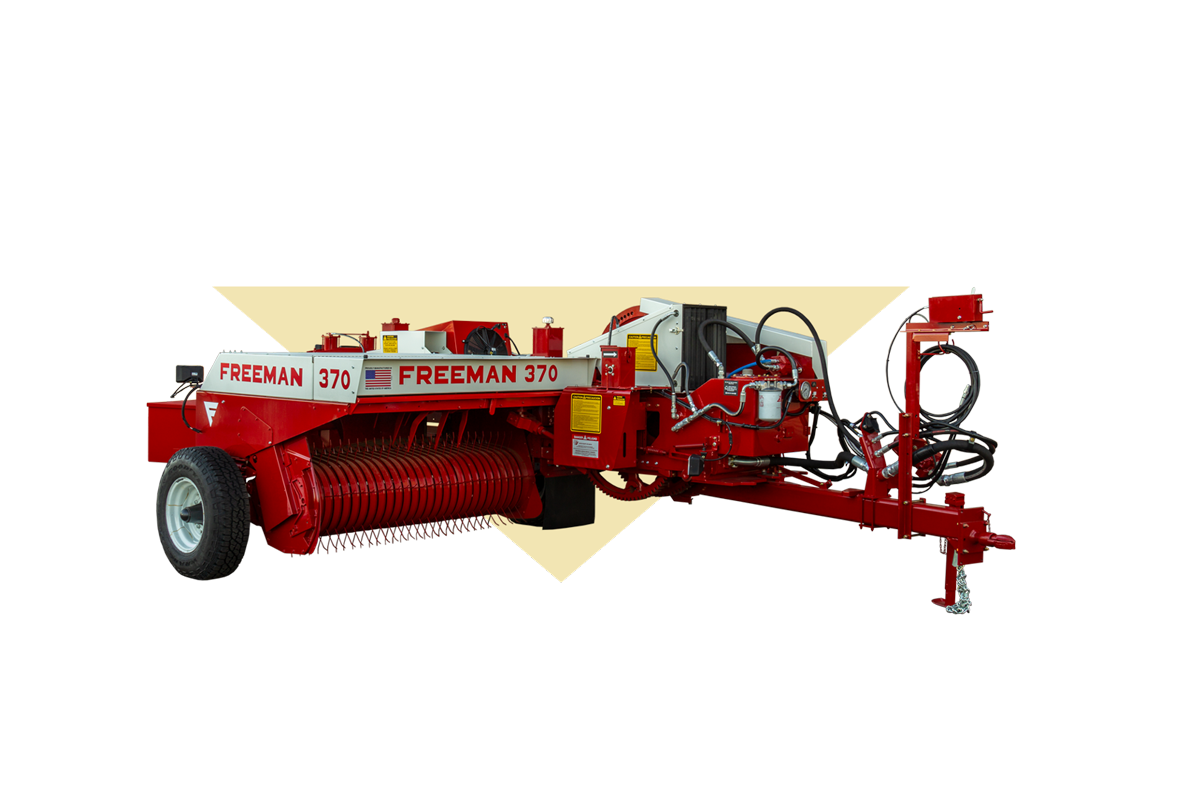

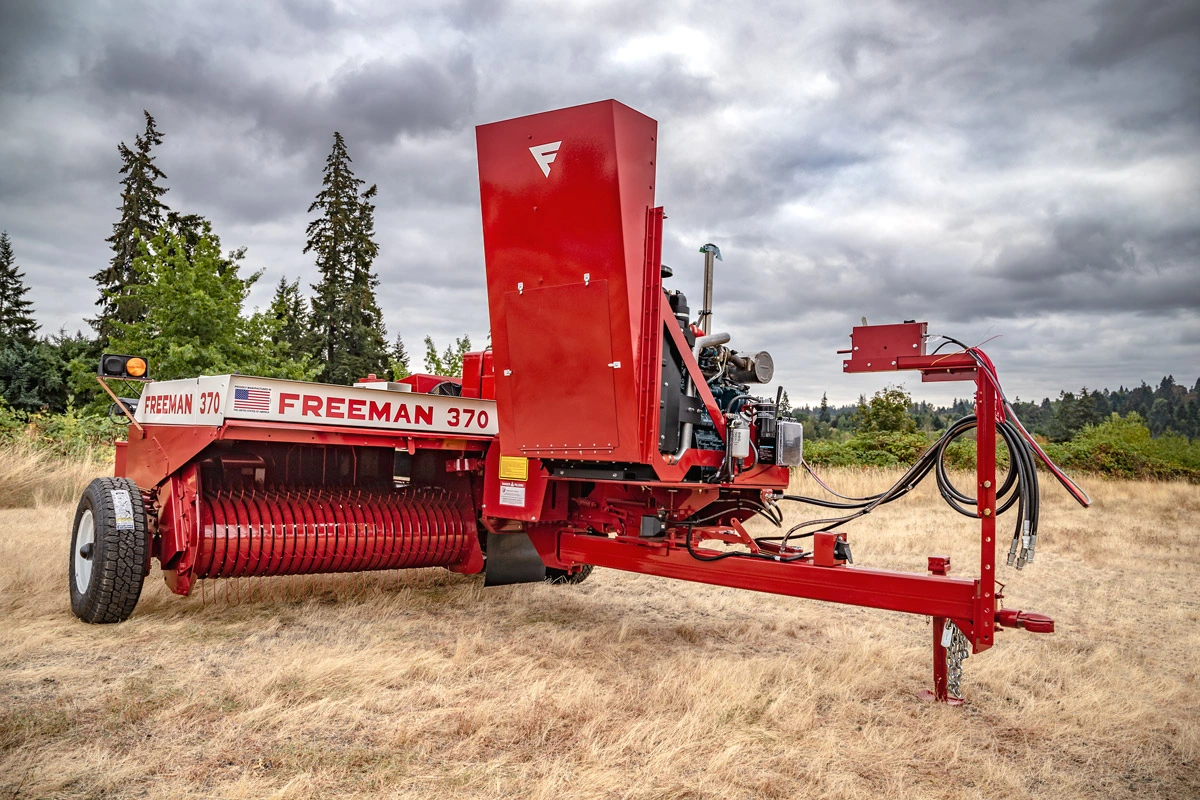

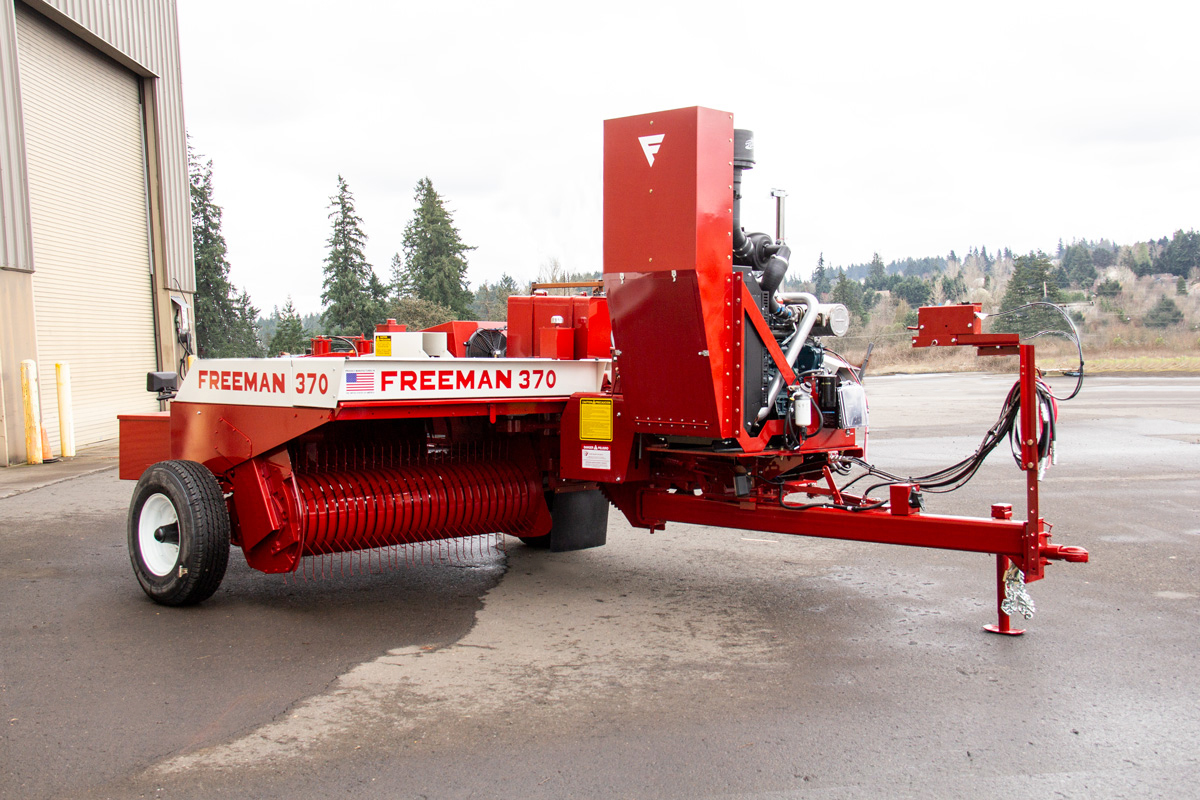

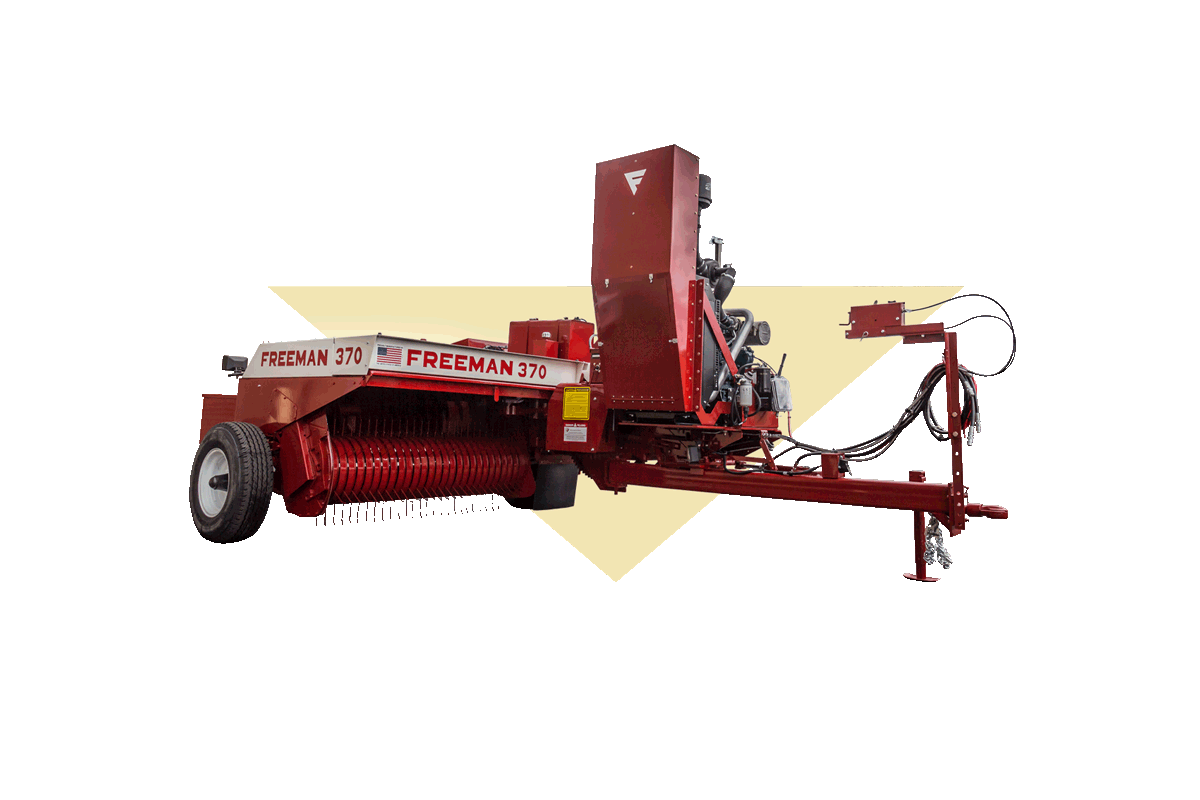

3-Tie Models: 370 / 375 / 380 / 385

3-Tie Models: 370 / 375 / 380 / 385

The Freeman three-tie balers are designed for higher capacity by increasing the power each plunger stroke delivers. The 420 lb flywheel, turning at 600 RPM, drives two 210 lb bull gears, which in turn power the 300 lb plunger at 84 stokes per minute. By using the kinetic energy from the heavy-duty flywheel, bull gears and plunger, there balers can bale up to 25 tons of straw and up to 30 tons of alfalfa per hour.

Specifications

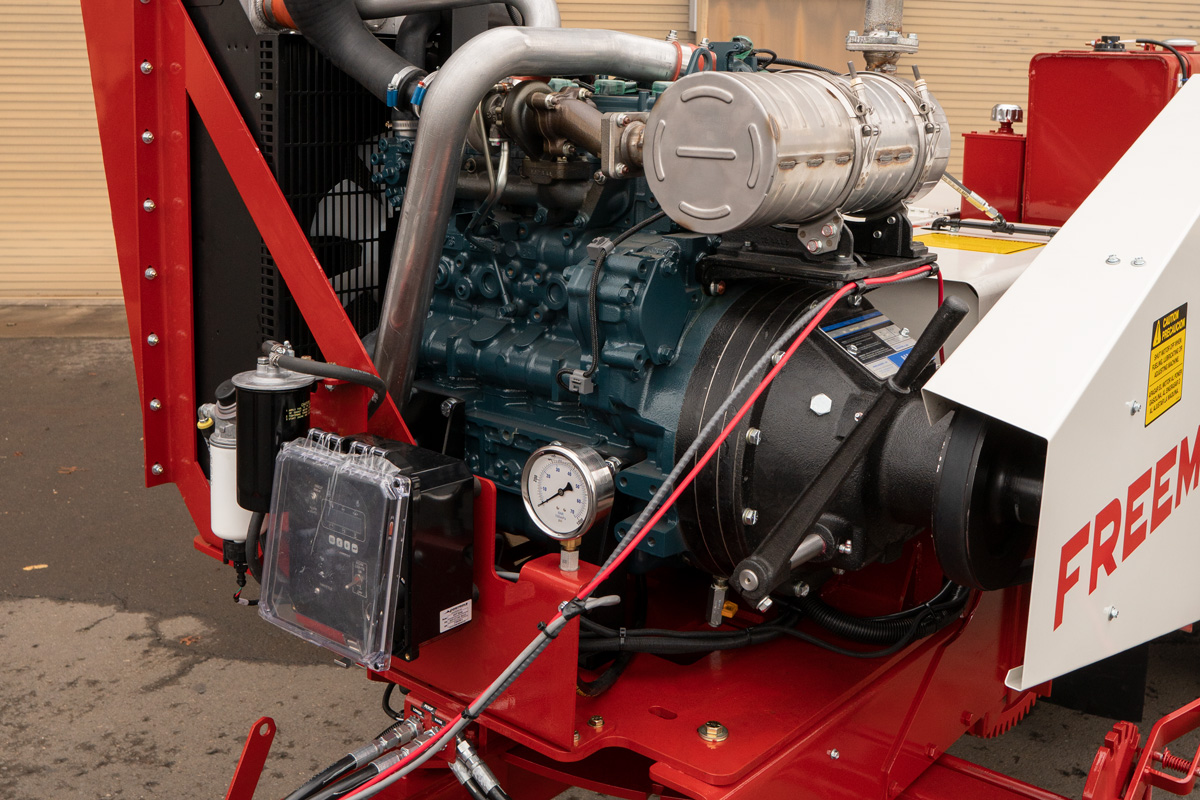

Power Options:  Engine
Driveline (PTO)
Hydro (Hydraulic)
Overall Length:  26' 0" (7,924 mm)
Overall Width :  10' 0" (3,048 mm) - LH Single Wheel
11' 0" (3,352 mm) - LH Tandem Wheel
Overall Height:  8' 1" (2,463 mm) - Engine
5' 6" (1,676 mm) - Hydro/Driveline
Weight:  8,600 lbs (3,900 kg) - 70 Series Engine with Bull Gears
10,600 lbs (4,808 kg) - 70 Series Engine with Gear Box
8,200 lbs (3,720 kg) - 70 Series Hydro with Bull Gears
10,200 lbs (4,626 kg) - 70 Series Hydro with Gear Box
9,000 lbs (4,082 kg) - 80 Series Engine with Bull Gears
11,000 lbs (4,989 kg) - 80 Series Engine with Gear Box
8,600 lbs (3,900 kg) - 80 Series Hydro with Bull Gears
10,600 lbs (4,808 kg) - 80 Series Hydro with Gear Box
Capacity:  30 ton/hour (alfalfa) (27,215 kg)
Strokes/Minute:  84
Bale Cross Section:  16" x 22" (406 x 558 mm) - Standard
15" x 22" (381 x 558 mm) - Optional
14" x 22" (355 x 558 mm) - Optional
14" x 21" (355 x 533 mm) - Optional
Bale Length:  18" to 52" (457 - 1,321mm)
Bale Weight Range:  90 to 180 lbs (41 to 81 kg)

Options

  • Stroke & bale counter
  • Hay saver wheel
  • Pickup depth wheel
  • Electric or Hydraulic pickup lift
  • Hydraulic swing drawbar
  • Bale weight indicator, hood mount
  • Digital bale scale
  • Flat chute attachment
  • Goose neck hitch
  • Clevis type hitch in lieu of standard 2 5/16" ball hitch
  • Pickup wind guard
  • Air blower for knotters
  • Auto tension release during tie cycle
  • Tandem tension assembly w/3 hydraulic rams
  • Tandem tension assembly w/4 rams
  • Flotation tires

Standard Features

  • (3) Conventional or Tailless Knotters
  • Automatic power lubrication system for conventional knotters
  • Hydraulic oil temperature and level gauge (hydro baler)
  • Twelve compartment twine box (12" x 12" compartment size)
  • Bale counter
  • Bale chute: Combination LH or RH turning
  • Extra wide pickup, 76" including 6" flare
  • (see specification sheet for more features)
