New Generation Wagner 2WD Logstackers

Wagner 2WD Logstackers are perfect for improved yards and are as productive as they are easy to maintain. The newly designed Wagner cab improves visibility and comfort for the operator and Wagner's tricycle steering allows the machine to maneuver in tight operating conditions. In addition, 2WD models do not have a center hinge like Big Wheel Loaders, which eliminates costly articulation repairs, and there is no rear drive axle to consume horsepower.

Allied Systems Company Facebook page   Allied Systems Company LinkedIn page
Features

Faster Hoist Speeds

Ground Level Service Bay

Lighted Stairways

Force-Cooled Wet-Disc Brakes

Easy Access Cooler Bays

Selectable Automatic Transmission

Advantages Over Big Wheel Loaders

Better Fuel Economy

3X the Tire Life

No Center Hinge to Repair

More Capacity for Dollar Spent

Greater Decking Height

Machine Lifespan 2-3 X More

Options

Tilting Cab

Engine and Hydraulic Tank Heaters

Auto Lubrication System

Rear-View Camera w/Color Monitor

Rotating Operator Platform

Fire Suppression System

And Many More

Featured Video

Click to learn more about the advantages of the New Generation Logstackers.

Logstacker Brochure

Model Rec. Work Load
lbs [kg]		 Static Tipping Load
lbs [kg]		 Max Lift Height
ft [mm]		 Max Power
hp [kW]		 Max Power At
rpm [r/s]		 Operating Weight
lbs [kg]
L90 Standard Model
90,000
[40,823]		 106,000
[48,081]		 19' 4"
[5,893]		 540
[402]		 2,100
[35]		 144,000
[65,317]
High Lift Model
80,000
[36,287]		 93,000
[42,184] 		22' 11"
[6,985]		 540
[402]		 2,100
[35]		 146,000
[66,224]
L100 Standard Model
100,000
[45,359]		 117,000
[53,070]		 19' 4"
[5,893]		 540
[402]		 2,100
[35]		 153,000
[69,400]
High Lift Model
90,000
[40,823]		 102,000
[46,266] 		22' 11"
[6,985]		 540
[402]		 2,100
[35]		 155,000
[70,307]
L120 120,000
[54,431]		 146,000
[66,224]		 20'2"
[6,147]		 540
[402]		 2,100
[35]		 183,000
[83,007]
L130 130,000
[58,967]		 153,000
[69,400]		 19'2"
[5,842]		 525
[391]		 2,100
[35]		 206,000
[93,440]
Note:
Values in this table are approximate.
Specifications are subject to change without notice or obligation.

Latest News

New Generation Wagner L100 Logstacker Ships to Japan!

Second New Generation CHD100 Chipdozer ships to Louisiana.

Wagner Support

Contact Us

New Units Service Parts & Field Service
Hitesh Patel
503.825.3380
wagner@alliedsystems.com 		503-625-2560
parts@alliedsystems.com
service@alliedsystems.com

Click to find a dealer in your area.

Click to Request more information.
Wagner Videos
Wagner 60 Ton Logstackers

L120 Video

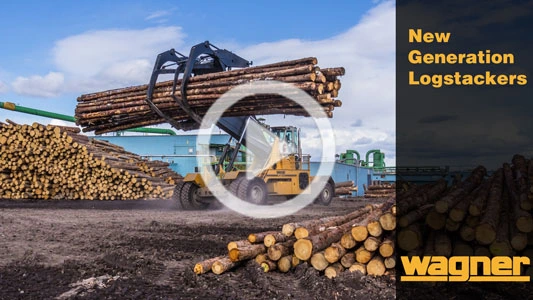

Wagner New Generation Logstackers

L4120 Video

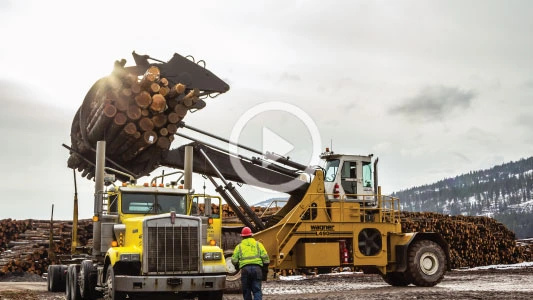

Wagner New Generation L490 Logstacker
