Freeman Water Extractor

WE-4
WE-4 Water Extractor

WE-5
WE-5 Water Extractors

Completely Automatic
Continuous infeed, the quick easy way to extract water from corn silage, carrots, beans, onions.... Wet fibrous pulp from pulp mills.
Freeman Extractors are rugged, heavy-duty machines designed to operate smoothly, dependably, and efficiently.
Free moisture is removed so that there is no dripping on highway hauls.
Extracts water from biomass.

Freeman WE-4 & WE-5 Water Extractor

Freeman water extractors are the quick and efficient way to extract water from food processor’s waste products, pulp slurries, and other waste products that contain excess liquid. The steady hydraulic pressure forces moisture out of weep holes in the long extrusion chamber. The top feed incorporates an electronic level sensor which, when it detects a full feed charge, cycles the plunger to allow material to flow to the chamber, then continuously exerts pressure on the load, removing the excess liquid. This is a continuous process which requires no labor.

For more information, take a look at the brochure.

Specifications

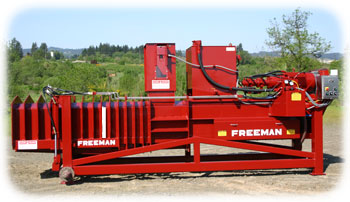

WE-4
Chamber Size	24”high x 24” wide
Platen Force	39,800 lbs
Motor	240/440 40 hp
Ram Size	4 1/2” Diameter
Operating Pressure	2,500 psi
Space Required	44” wide x 208” long
Height Overall	92”
Height to Hopper	92”
In Feed Opening	20”x20”
Stroke Length	42”
Shipping Weight	9,000 lbs.

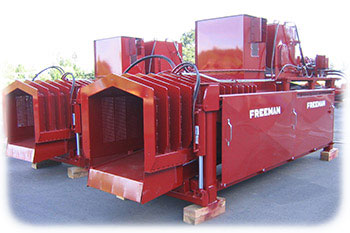

WE-5
Chamber Size	40”high x 32” wide
Platen Force	84,800 lbs
Motor	75 hp
Ram Size	6” Diameter
Operating Pressure	3,000 psi
Space Required	70” wide x 228” long
Height Overall	102 1/2”
Height to Hopper	98”
In Feed Opening	24” x 36 1/2”
Stroke Length	42”
Shipping Weight	17,200 lbs.
