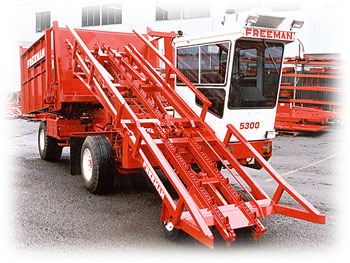

Freeman 5300 Roadsider

Standard Equipment

Power Train & Chassis

  • Turbocharged, 6 cyl., 152 HP 5.9L Cummins diesel engine
  • Side mount heavy duty radiator w/reversing hydraulic cooling fan
  • Allison 4-speed automatic transmission
  • Eaton front steering axle, 12,000 lb. load rating
  • Eaton electric shift 2-speed rear axle, 19,000 lb. load rating
  • Air brakes

Tire Size

  • Front tire size:  15-19.5, 14 ply
  • Rear tire size:  40 x 19-19.5, 14 ply
  • Pickup tire size:  18.5 x 8.5, 8 ply

Deluxe Cab Accessories

  • Adjustable air ride operator's seat
  • Heavy duty air conditioner with remote outside air filter
  • Cab heater
  • Work lights, driving lights, stop lights and turn signals
  • Tinted glass windows, windshield wiper, side mirrors
  • Power steering
  • Tachometer, engine hour meter, fuel gauge, air pressure gauges
  • Engine temperature gauge and high temperature warning light
  • Oil pressure gauge and low oil warning light

Options

  • Turbocharged 177 HP, 5.9L Aftercooled Cummins diesel engine
  • Pioneer AM/FM Super Tuner III w/TSX100 Speakers



Freeman

5300 Roadsider

The 5300 Roadsider saves you time and money transporting your hay from field to market. It picks up 2 different sizes of bales at a rate of 60 tons per hour. The 5300 Roadsider and 1592 Big Baler combination is one of the most cost-effective, labor-saving big bale systems available.

Features

  • Stacks big bales up to 60 tons per hour.
  • Handles Freeman big bales or 4' x 4' big bales
  • Cummins diesel power, 4-way air brakes and deluxe cab are standard.

Specifications

Weight: 18,450 lbs.

Width: 9' 5"

Working Height
With bale: 13'
Without Bale: 10' 1"
With Bed in Up Position: 16' 1"

Engine
Make: Power-Turbocharged 6 Cyl. 5.9L Cummins Diesel Engine
Torque Rating: 414 ft/lbs.
Horsepower: 152 HP
Transmission: 4-Speed Allison Automatic
Brakes: 4-Wheel Air Brakes
Fuel Capacity: 70 Gallons

Stack Size
Height: Up to 13'
Width: 8'
Depth: 6' to 9'

Capacity
Bales per load (Freeman): 8 per load
Bales per load (Hesston/Case-IH): 6 per load
Bale length required: 6-9 ft
*Tons per load: 6
Average number of loads per hr: 10
*Average capacity per 10-hr day: 800 bales or 600 tons

*Tons per load and average capacity refers to stacking 1,500 pound Freeman bales, with distance to stacking area figured at up to 1/4 mile.
