Allied Marine Cranes

Cranes

Click below for more information.

DT	TB	K	TK
Double-Tapered Boom	Telescopic Boom	Knuckleboom	Telescopic Knuckleboom

The Double Taper Boom crane features a fixed length, sealed box section boom for a strong, lightweight, economical crane.	The perfect solution for applications that require reach and compact storage, the Telescopic Boom crane is available with two to four box boom sections.	Save space and still handle the most challenging jobs with the Knuckleboom crane. Flexible enough to maneuver into hard-to-reach locations, the Knuckleboom crane is perfect for cargo applications and locations with difficult access from overhead.	The Telescopic Knuckleboom crane combines the advantages of the Knuckleboom and Telescopic Boom cranes. Extend your reach and get into tight areas with the Telescopic Knuckleboom design.
Made in the USA, Allied Marine Cranes come standard with stainless steel HPU units, minimizing corrosion and maintenance.

Cranes

Click below for more information.

Portable	Mobile	Custom

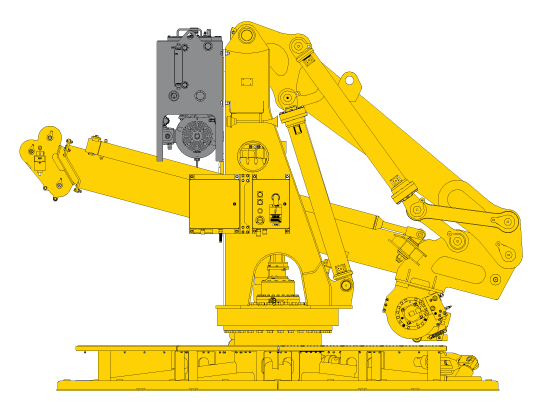

A space-saving Knuckleboom crane designed for practicality and efficiency, the portable crane can be moved around deck to handle the widest variety of applications.	Perfect for working on multiple job sites, and built to take the punishment, this land-based crane is made to be mounted on mobile equipment. We work with you to create a crane package to match your requirements.	Allied understands the requirements for working in tough environments, marine or mobile. If a standard model doesn’t fit your application, Allied will design and manufacture a custom crane solution, configured to meet your needs with options to suit the application.
Made in the USA, Allied Marine Cranes come standard with stainless steel HPU units, minimizing corrosion and maintenance.

Davits

Click below for more information.

D	DC	DDP
Davit	Cradle Davit	Dual Point Davit	Custom

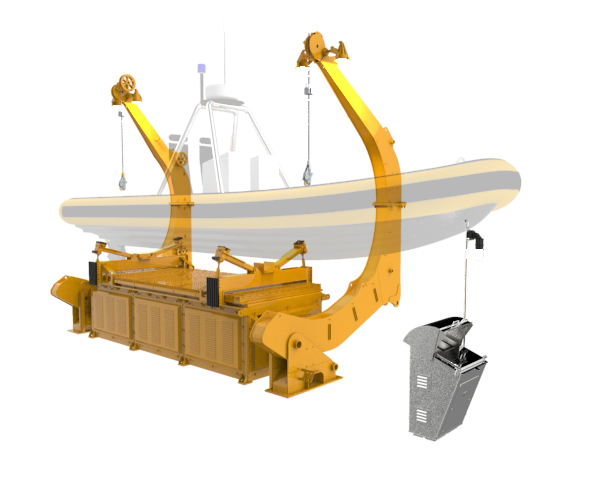

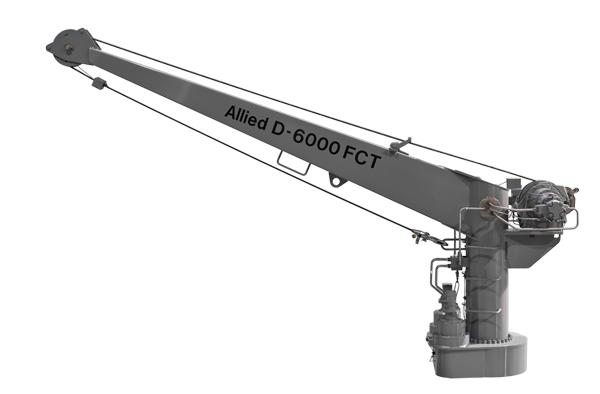

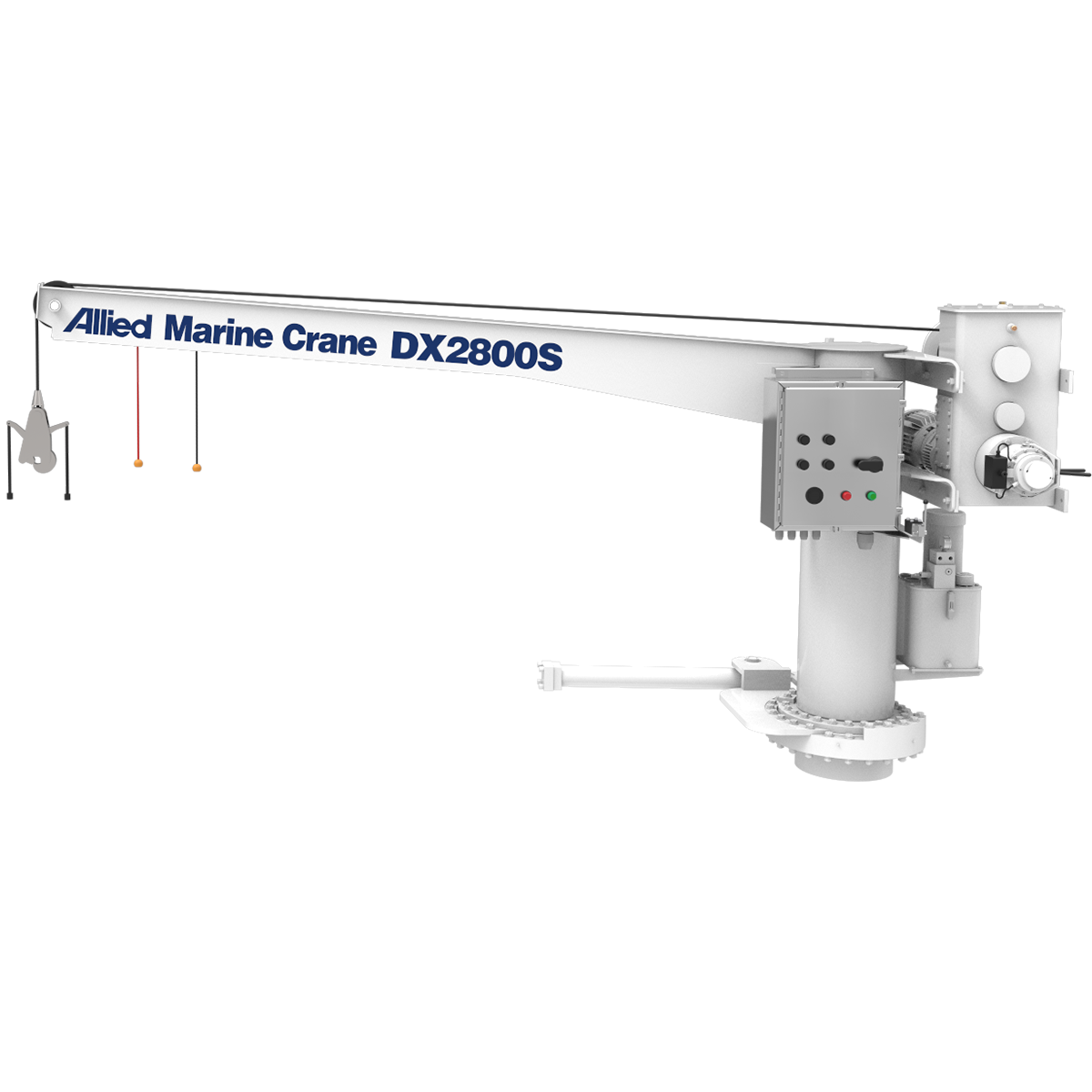

All Allied single point D-designated davit systems are low maintenance designs, requiring less upkeep while giving excellent performance.	Cradle-style davits are perfect for tight spaces. Our unit, with HPU included, is completely contained within its own frame, requiring less room on your deck.	The new Dual Point davit has two lift points to yield more stability during launch and recovery operations. The self-contained design, including HPU, saves space on deck.	Allied understands our customers' requirements for working in the tough marine environment. Allied specializes in the custom design and manufacture of unique davits, configured to meet our customers needs with options to suit the application.
Made in the USA and SOLAS approved, Allied Marine davits come standard with stainless steel construction HPU units, minimizing corrosion and maintenance.

A-Frames

Click below for more information.

Portable	Fixed

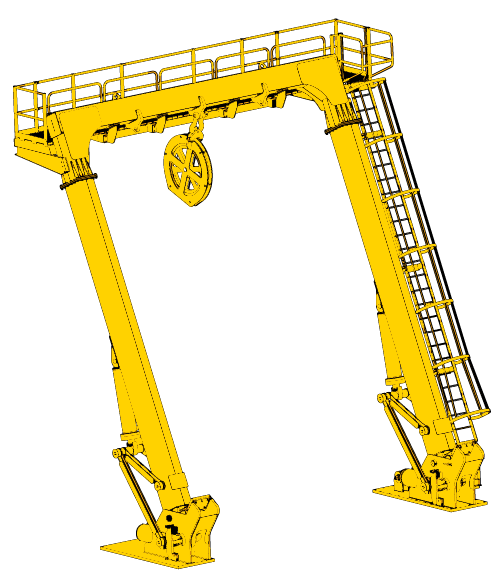

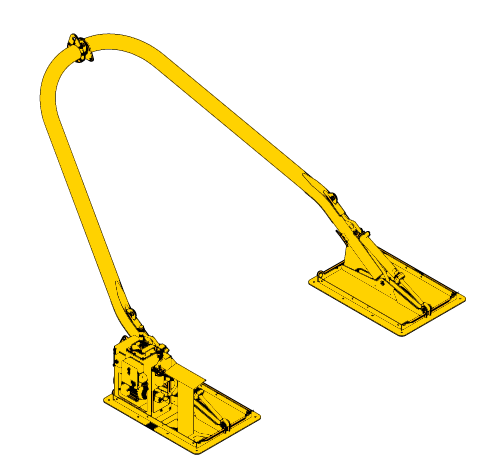

The Portable A-Frame with HPU has all the functions of the Fixed A-frame, and can be stored and transported as needed. The HPU is contained on the base, efficiently using deck space while allowing for flexible use.	Common on research vessels, The Fixed A-Frame can be located on the stern. With a capacity of 30,000 lbs. or 40,000 lbs., it can handle ROVs and other equipment.

Handling Systems

Click below for more information.

CTD/Side Handling	Hydra-Boom

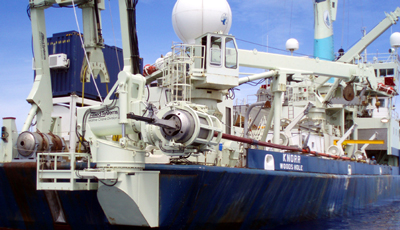

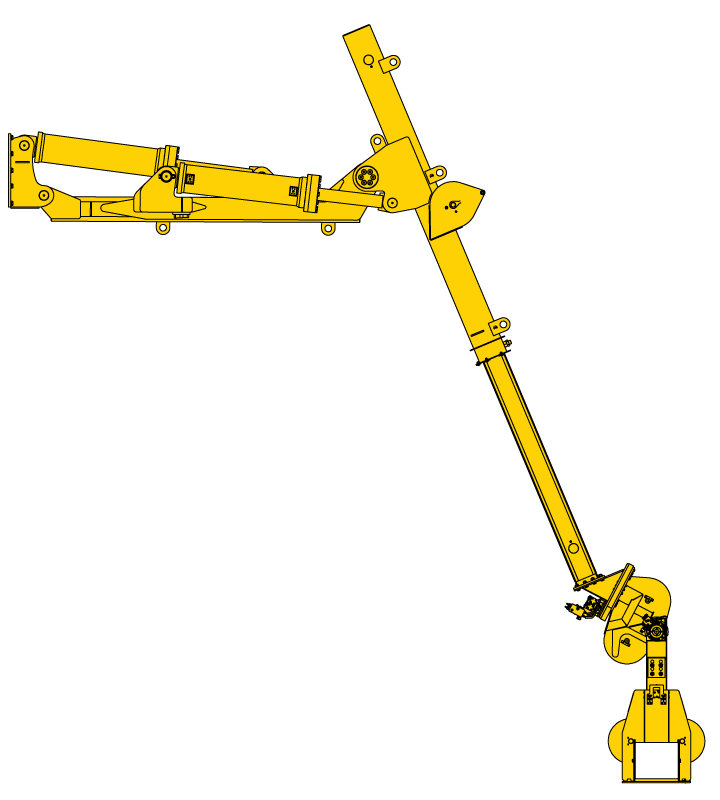

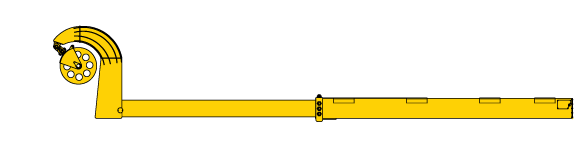

Used on research vessels to handle conductivity, temperature and depth measuring equipment, the CTD/Side Handling crane can also lower ROVs for subsea exploration.	Use your vessel's own rope and winch system in combination with an Allied Hydra Boom to lower research equipment off the side of your vessel. Telescoping action allows the Hydra Boom to save space when not in use.
Made in the USA, Allied Marine crane products come standard with stainless steel construction HPU units, minimizing corrosion and maintenance.

Winches

Click below for more information.

CT	AH	PD	CH
Allied Constant Tension	Allied ABS (Cold Weather)	Braden Planetary	Braden Planetary

Allied Marine Crane Constant Tension winches lead the industry with robust design, smooth operation and best-in-class reliability.	Allied AH winches meet stringent ABS requirements for personnel handling in cold weather applications.	The Braden PD Series planetary winch is a high performance product designed to provide many years of service.	The Braden CH Series planetary winch is a high performance product designed to provide many years of service.

Hydraulic Power Units

Click below for more information.

Electric	Diesel

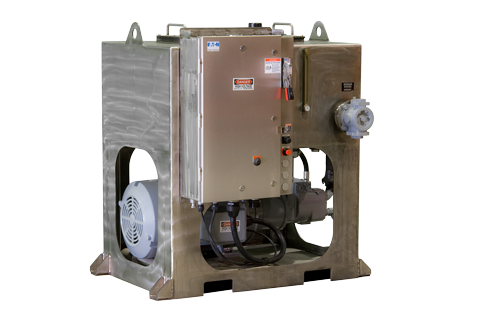

Allied electric hydraulic power units are designed for longevity in severe marine environments. Mounted in or on the pedestal, or remotely on a skid, this self-contained unit is engineered for the most efficient use of your deck space.	Diesel HPUs can be mounted on the rotating turret or remotely on a skid. Units are self-contained and designed to utilize your deck space efficiently. All HPUs come with stainless steel covers and fittings to minimize corrosion and increase durability.

Support

Click below for more information.

Field Service	Service Parts	Rebuild

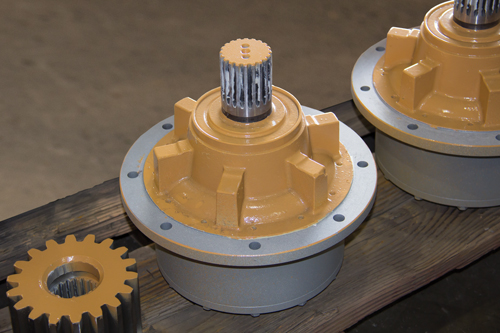

Allied Marine Crane is your only source for factory training and inspection. Our service team will deliver every time, day or night, around the globe.	You rely on your Allied Marine Crane or Davit to perform vital work. You should also rely on the Allied Marine Crane Parts Department as your resource for parts for your crane or davit.	Have your crane, davit, or major component rebuilt or remanufactured at the factory. Allied Marine Crane originally engineered, designed, built and tested your crane, and is the only company capable of restoring your equipment to its original specifications.
