Firmly grips and holds broke on forks while traveling
Extends fully out of the way to allow normal use of forks
Variety of mountings available, including integral, weld-on, and pin
Quick change lower hooks included

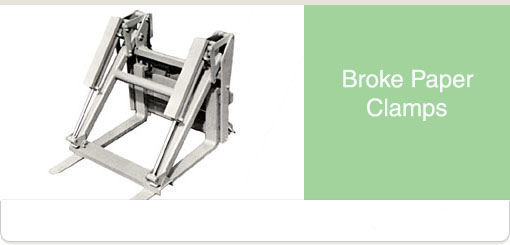

Long Reach Broke Paper Clamps

The Broke Paper Clamp was developed specifically for the paper industry to stabilize scrap paper cuttings called "broke" while being transported. Clamping the broke allows the lift truck driver to move more material faster. Once the scrap is cleared away, the clamp arms swings up to a vertical position parallel to the mast, well out of the way, allowing normal lift truck operation.

Other features include:

  • Handles broke paper, flattened cardboard cartons, waste packing paper and other similar materials while maintaining normal forklift operation

  • Developed specifically to stabilize scrap paper cuttings

  • Attachment wraps around truck carriage for minimum lost load thickness and center of gravity

  • Utilizes long-lasting chrome-plated cylinder rods and precision honed shells

  • Allows excellent operator visibility of load

  • Twin hydraulic cylinders exert firm, even pressure on load



For additional specifications:

Broke Paper Clamp Spec

Installation, Maintenance And Service Manual: QCN

45-058
