Clean, grease-free handling of textile rolls
Visibility that puts the driver in control
Application engineered for the textile industry
Hardened tips available for extended life

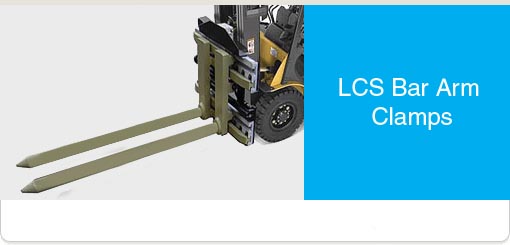

Long Reach Bar Arm Clamp

Engineered for the textile industry, Long Reach's bar arm clamp gives an efficient attachment for handling a variety of various diameters of cloth rolls without damage. Adjustable widths to match your application and the controlled clamping force provide speed in handling the load as well as reduce the wear on the truck.

Capacities range from 1000-1700 lbs. (450-775 kg) per arm at tip with opening ranges up to 56" (1440 mm) and arm lengths up to 72" (1830 mm). Other features include:

  • Arms specifically engineered with rounded surface and tapered tips handle rolls of cloth or other materials quickly and easily without snagging or damaging the product

  • Available in both sideshifting and non-sideshifting models

  • "Repair-In-Place" Serviceability means no-lube polymer wear strips can be replaced in just minutes

  • Grease-free handling eliminates grease smears on textiles



For additional specifications:

Bar Arm Clamp Spec

Installation, Maintenance And Service Manual: LCS

45-006
