Clean, grease-free handling — no lubrication required
Rubber covered aluminum contact pads
Unsurpassed visibility — low profile and thin-line heel

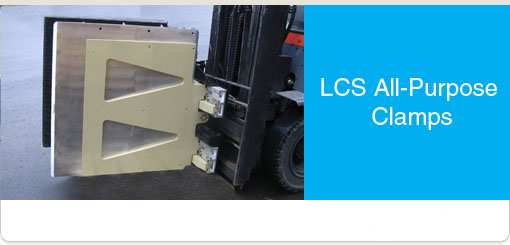

Long Reach All-Purpose Clamps

Handling loads for shipment, warehousing, receiving and order picking are all easy operations for this rugged all-purpose attachment. Thin profile arms allow chiseling between closely stocked loads and vulcanized rubber contact pads provide a firm grip with safe handling. With capacities that range from 2,500-5,000 lb @ 24" load center (1140-2270 kg @ 600 mm) with opening ranges up to 76" (1930 mm) as standard, the proper Long Reach all-purpose clamp can be matched with the required operation.

Other features include:

  • Available in rotating and non-rotating models for added handling versatility, or combined with upending feature

  • Also available in sideshifting or non-sideshifting configurations

  • Rubber-covered aluminum contact pads (reversible pads also available)

  • "Repair-In-Place" serviceability (on models with capacities up to 5,000 pounds) means no-lube polymer wear strips can be replaced in just minutes

  • Grease-free handling eliminates grease smears

  • Regenerative hydraulics available

  • Unsurpassed visibility with low profile and thin-line heel

For additional specifications:

All Purpose Clamp Spec

Installation, Maintenance And Service Manual: LCS

45-006
