BEST IN THE FIELD

2 Tie Side Feed Bales

2-Tie Baler Models: 270 / 275 / 280 / 285

2-Tie Baler Models: 270 / 275 / 280 / 285

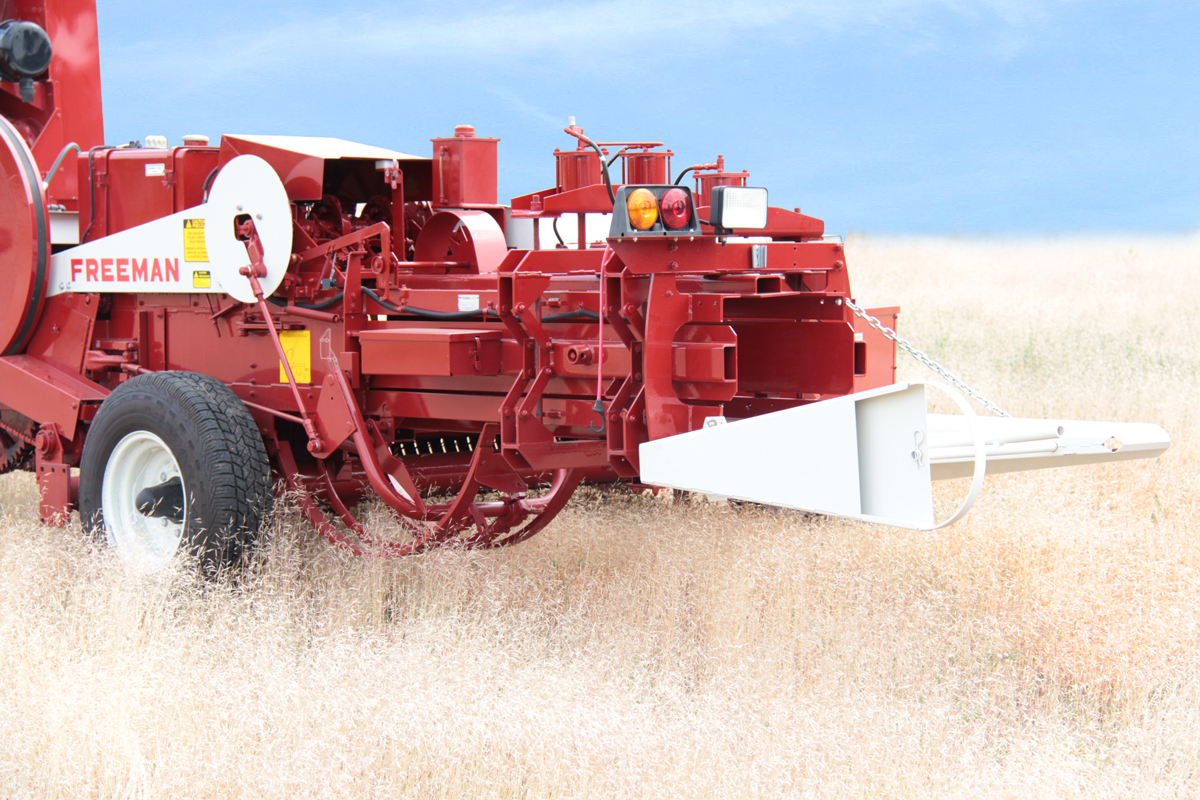

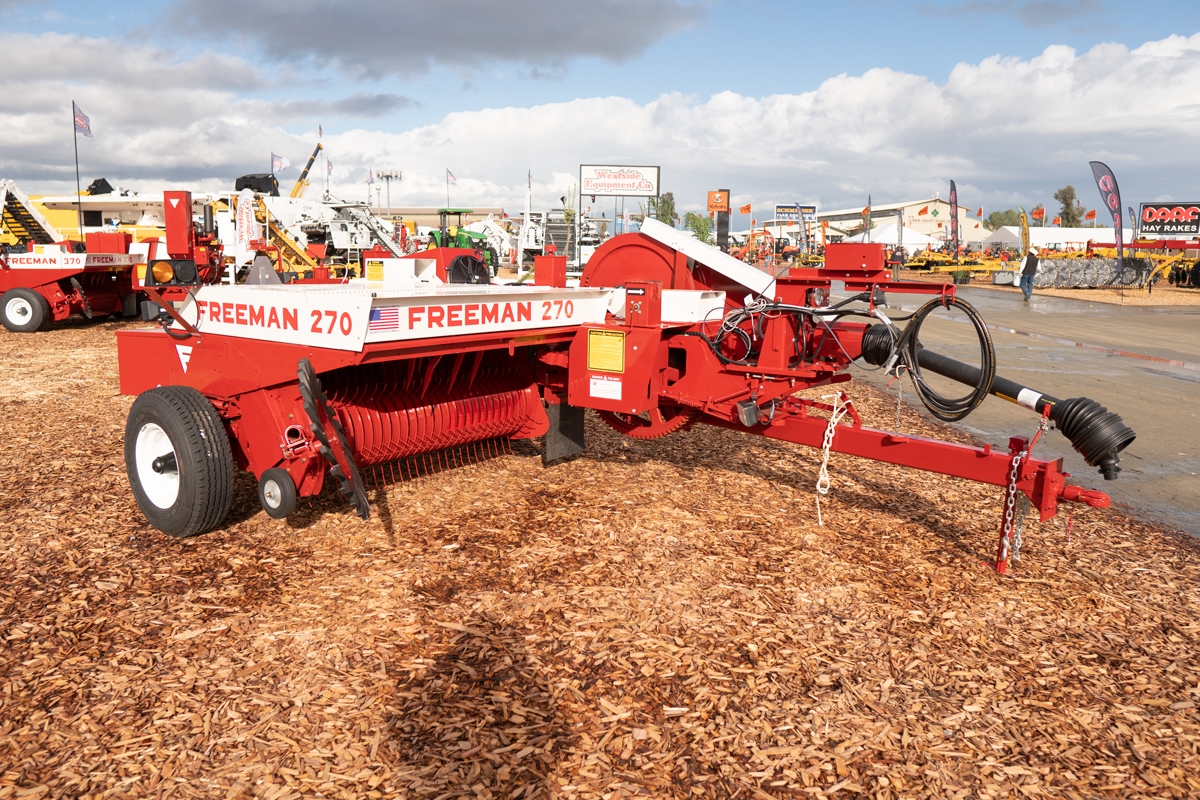

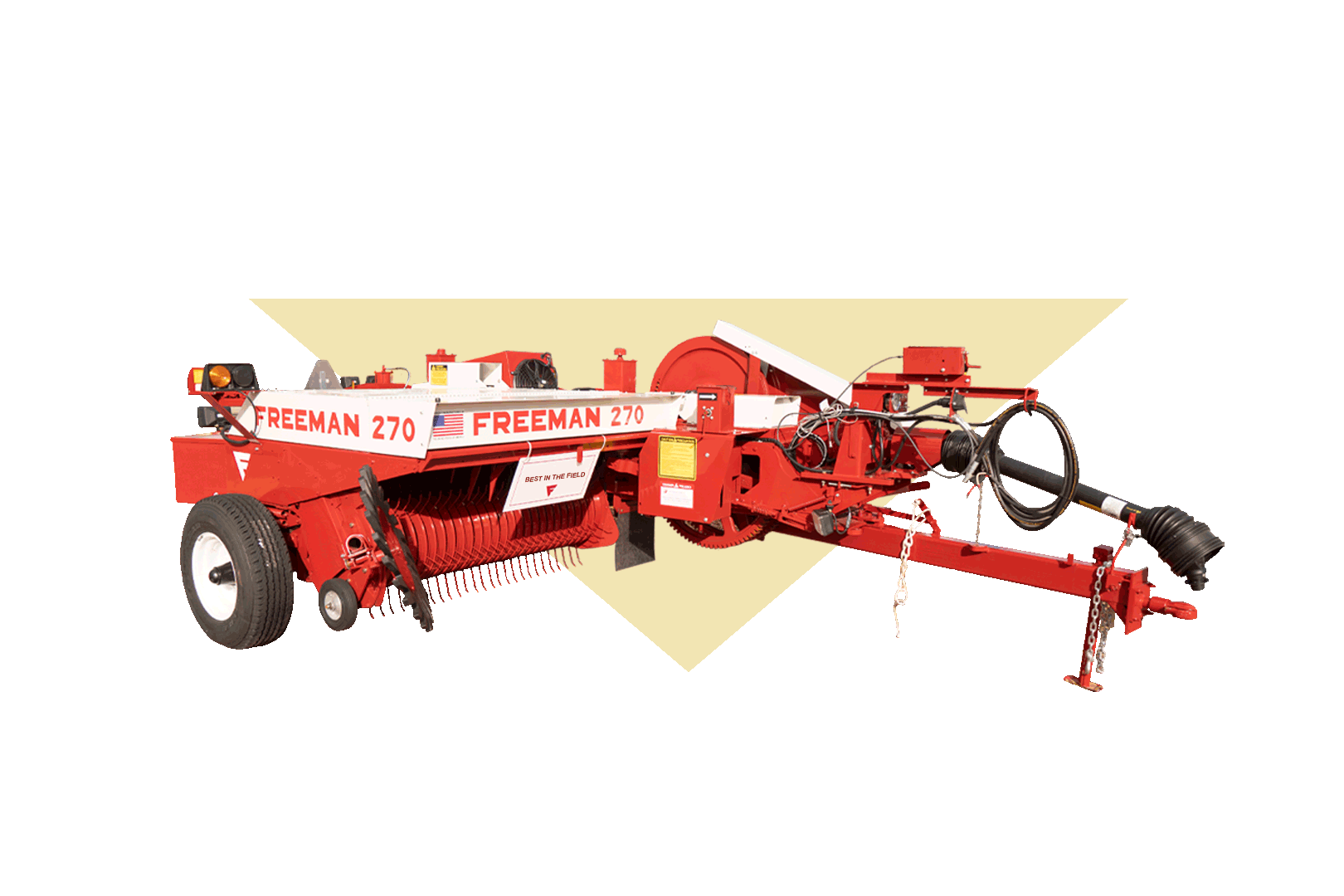

The Freeman two-tie balers are designed for higher capacity by increasing the power each plunger stroke delivers. The 420 lb flywheel, turning at 600 RPM, drives two 210 lb bull gears, which in turn power the 300 lb plunger at 84 strokes per minute. By using the kinetic energy from the heavy-duty flywheel, bull gears and plunger, these balers can bale up to 20 tons of straw and up to 25 tons of alfalfa per hour.

Specifications

Power Options:  Driveline (PTO)
Hydro (Hydraulic)
Overall Length:  26' 0" (7,924 mm)
Overall Width :  10' 0" (3,048 mm) - LH Single Wheel
11' 0" (3,352 mm) - LH Tandem Wheel
Overall Height:  5' 6" (1,676 mm) - Hydro/Driveline
Weight:  6,470 lbs (2,934 kg) - 70 Series Hydro
6,950 lbs (3,152 kg) - 80 Series Hydro
Capacity:  25 ton/hour (alfalfa) (22,679 kg)
Strokes/Minute:  84
Bale Cross Section:  16" x 18" (406 x 457 mm) - Standard
14" x 18" (355 x 457 mm) - Optional
Bale Length:  18" to 52" (457 - 1,321mm)
Bale Weight Range:  60 to 120 lbs (27 to 54 kg)

Options

  • Stroke & bale counter
  • Hay saver wheel
  • Pickup depth wheel
  • Electric or Hydraulic pickup lift
  • Hydraulic swing drawbar
  • Bale weight indicator, hood mount
  • Digital bale scale
  • Flat chute attachment
  • Goose neck hitch
  • Clevis type hitch in lieu of standard 2 5/16" ball hitch
  • Pickup wind guard
  • Air blower for knotters
  • Auto tension release during tie cycle
  • Tandem tension assembly w/3 hydraulic rams
  • Flotation tires

Features

  • (2) Conventional or Tailless Knotters
  • Automatic power lubrication system for conventional knotters
  • Hydraulic oil temperature and level gauge (hydro baler)
  • Twelve compartment twine box (12" x 12" compartment size
  • Bale counter
  • Bale chute: Combination LH or RH turning
  • Extra wide pickup, 76" including 6" flare
  • (see specification sheet for more features)
