Specifications

Dimensions & Weight
Weight: 11,100 lbs.
Length with Bale Chute: 26’ 0"
Width: 8’ 5"
Height: 6'5"
Tongue Weight: 1,280 lbs.

Engine Specs
Engine: Deutz 4 Cyl. In-Line 231 CID
Horsepower: 67 HP
Fuel: Diesel
Fuel Tank Capacity: 30 Gal.

Lights
Working: 6 Halogen Lamps
Road: Red & Amber

Tire Specs
Baler: 14 Ply Rated, 400/60-15.5 Flotation
Pickup: 4 x 8"

Feed System
Charge System: 6 Tine, Dual Stage
Drive: RC 100 Roller Chain
Drive Protection: Shear Bolt

Knotter Lubrication
Lubrication System (Automatic): 18 Points

Plunger
Speed: 95 strokes/min.
Length of Stroke: 24"
Mounting: 4 sealed roller bearings

Tying Mechanism
Knotter: 3 Heavy-Duty Knotters
Tie Type: Bale Twine
Twine Storage Capacity: 12 Balls
Knotter Blower Fan: Blade Type

Main Drive System
Gearbox: Enclosed Spur Gears
Flywheel Diameter: 28"
Flywheel Weight: 440 lbs.
Flywheel Protection: Shear Bolt

Pickup
Width (Outer): 99.25"
Width (Inner): 92"

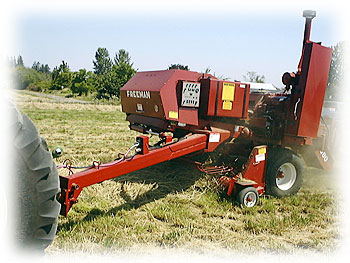

1390 In-Line Small Balers

The 1390 in-line baler incorporates a centered bale chamber that allows the tractor and baler to straddle the windrow while baling. It has both a tractor mounted remote control/monitor and baler mounted controller. You receive additional speed & baling performance along with legendary Freeman ruggedness and reliability.

For more information, take a look at the 1390 In-Line Baler brochure.

Features

• 95 Strokes per minute for increased production
• Simple feed mechanism requires less maintenance
• Crop to crop production without time consuming adjustments
• Clean flake from top to bottom creates maximum marketing flexibility
• Operator friendly with cab and baler controls
• Uniform and compact rectangular bales through a variety of crops and field conditions

Standard Equipment

• Heavy duty-high capacity dual cam pickup, width-99 1/4" (outside), 92" (inside)
• Lights: 6 halogen work lights, red and amber
• Both Tractor Mounted Remote Controller Monitor & Baler Mounted Controls:
  • Baler speed in strokes per minute
  • Engine monitor light/alarm
  • Fuel gauge
  • Engine start/stop
  • Bale density
  • Pickup lift
  • Clutch engage
  • Drawbar swing
  • Work lights
  • Resettable bale counter
  • Alternator, oil pressure and temperature warning lights
• Tractor Mounted Remote Only:
  • Baler strokes per minute indicator
  • Strokes per bale indicator
• Baler Mounted Monitor/Controller Only:
  • Local and remote switch
  • Engine monitor light/alarm
  • Hour meter
• The baler is controlled remotely, but the baler mounted controls provide full backup)
• Engine: 231 CID Deutz balanced 4 cyl diesel, air cooled engine
• Automatic knotter lubrication system
• On board hydraulic system with close coupled engine mounted pump
• Integrated hydraulic controls for pickup lift, drawbar swing, bale density, belt clutch
• Gearbox: enclosed spur gears--long lived and durable

Options

• Flat chute Attachment
• Highway Tires
